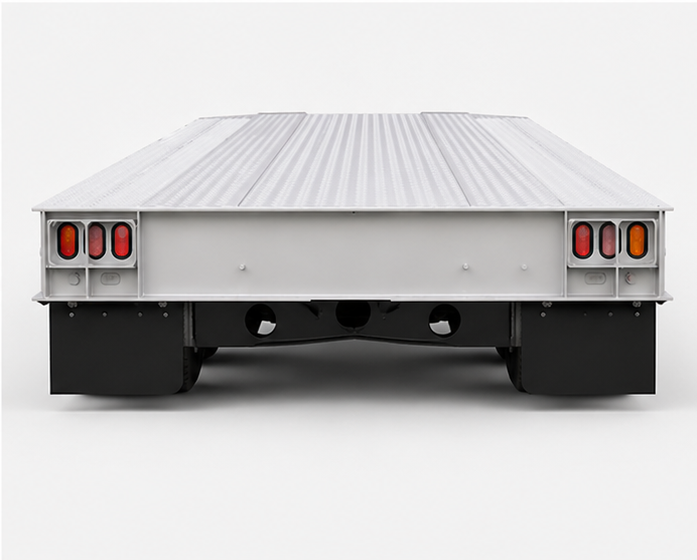

40t Lowbed Trailer
Engineered for strength and versatility, this 40-ton lowbed trailer provides excellent load capacity and stability, ideal for hauling heavy construction equipment.
Features
40-Ton Capacity:
Capable of carrying up to 40 tons, suitable for heavy equipment and machinery.
Reinforced Chassis:
Designed to handle heavy loads with a robust and reinforced chassis.

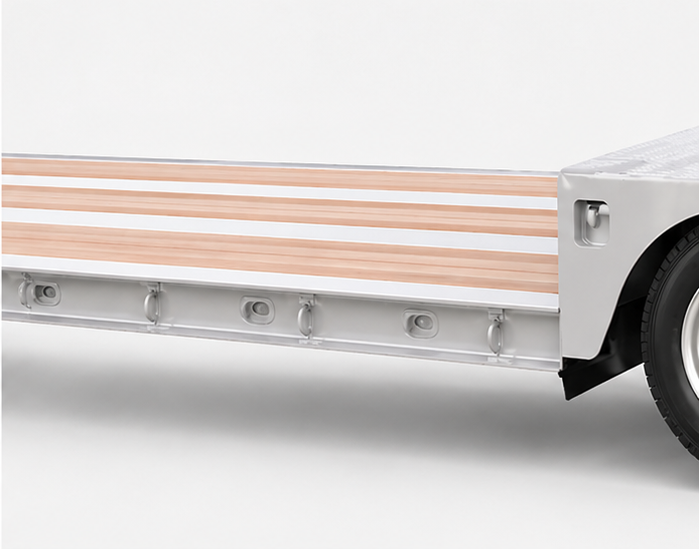

Wide Deck Space:
Offers ample space for transporting larger machinery and construction vehicles.
Easy Loading:
Low platform height simplifies the loading and unloading of tall and heavy items.
Specifications
| PARAMETER | Dimension | L*W*H: 12740X3000XH(mm) |
| Load Platform Dimension | 4100x3000mm (Concave type) | |
| Kin Pin Plate Height | H(mm) | |
| Axle space | 8340+1310+1310 (mm) | |
| Payload | 40,000kg | |
| OEM | Landing gear | TSU 28 Ton |
| Kingpin | 2″(50#) bolted, JOST | |
| Brake system | Dualline pneumatic brake system. | |
| ABS | No | |
| Brake chamber | Type 30/30 spring brake chamber on two-axle | |
| Suspension | Spring suspension | |
| Leaf spring | 7pcs | |

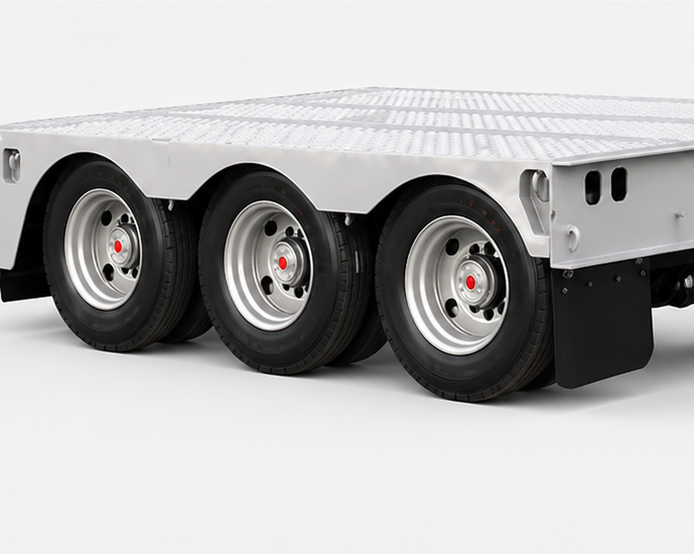

| Axle | FUWA square axle, 13-ton capacity/set,3pcs | |
| Tire | 11R20, 12pcs, made in China, Brand Ling Long | |
| Rim | 8.0-20, 10 Holes Is0, 12pcs, made in china | |
| Spare tire carrier | 1Unit | |
| OTHERS | Ramps | 2pcs. 800mm width. Ramps are spring-loaded and manually operated with a safety chain. |
| Painting | As customer request |
