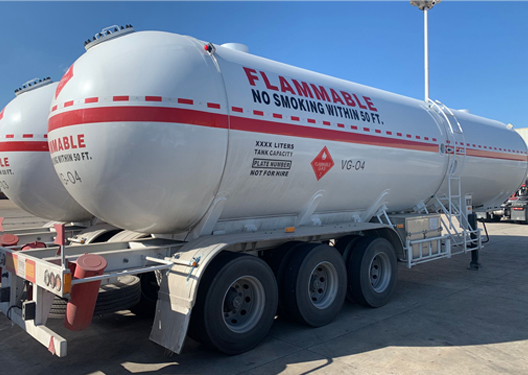

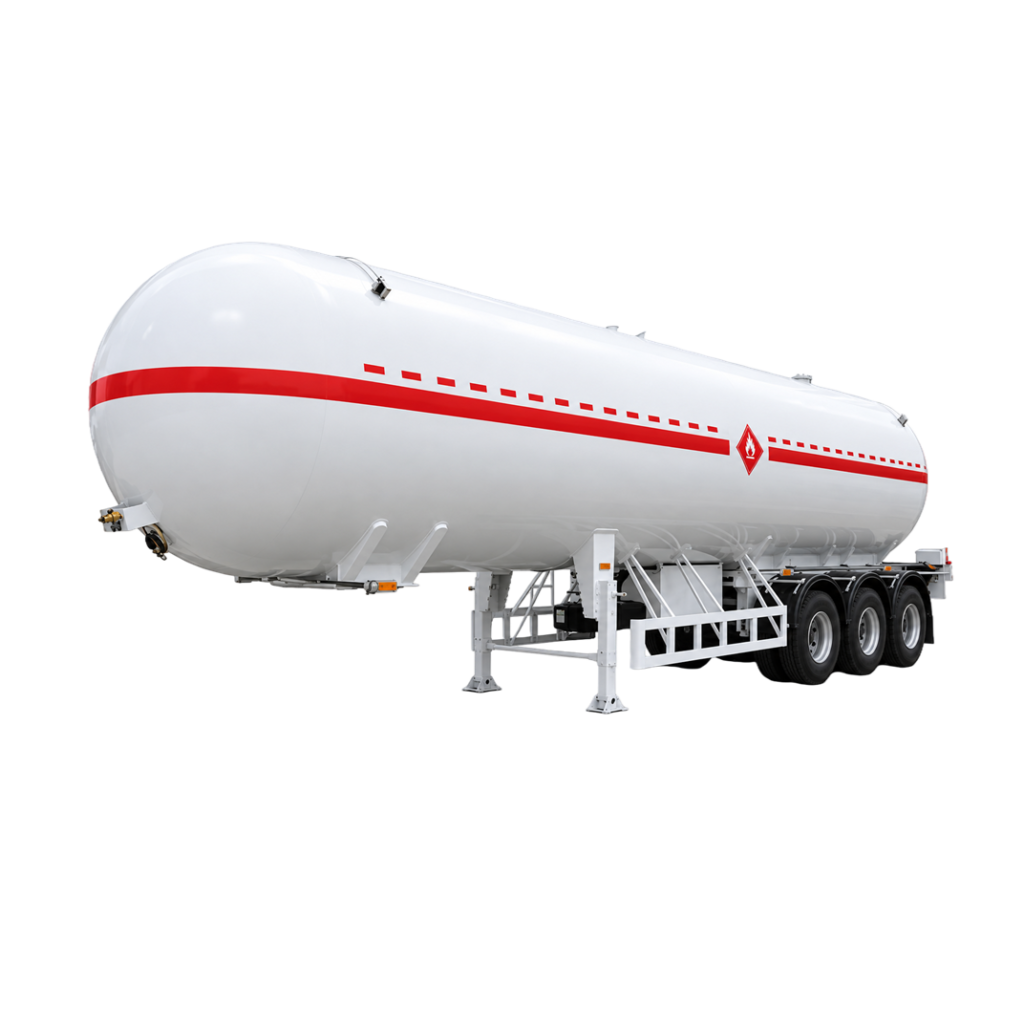

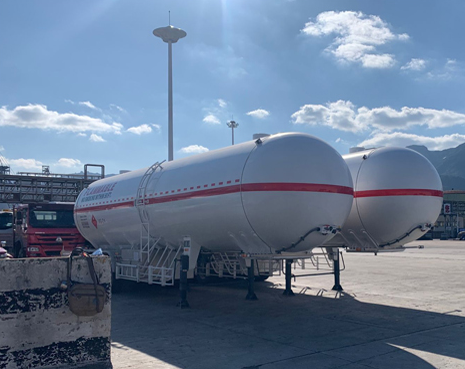

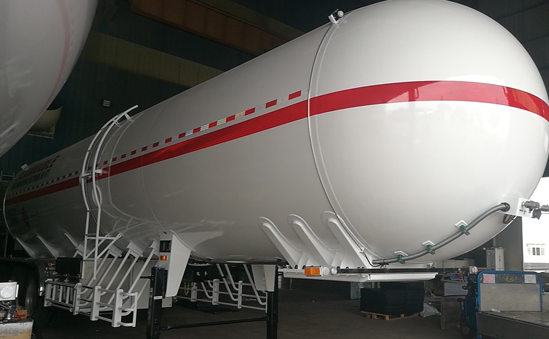

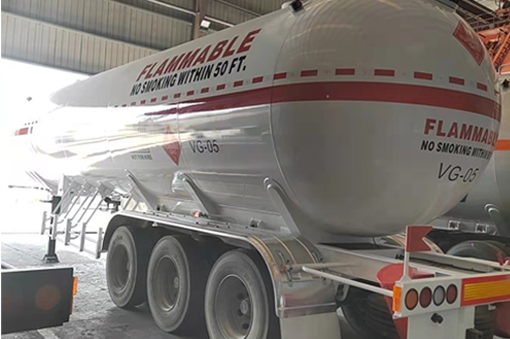

CIMC 3 Axle LPG Tank Trailer 56.1cbm
This specialized trailer is designed for the safe and efficient transport of liquefied petroleum gas (LPG), featuring a 56.1 cubic meter capacity. Built with high-strength materials and equipped with advanced safety features, it ensures secure handling and compliance with industry regulations.
Features
56.1 Cubic Meter Capacity:
Offers substantial storage volume for transporting large quantities of LPG, reducing the need for frequent trips.
Durable Construction:
Made from high-quality materials to withstand high pressures and harsh operating conditions, ensuring long-term reliability.
Safety Features:
Equipped with multiple safety systems, including pressure relief valves and anti-static grounding, to ensure safe transport of hazardous materials.
Efficient Insulation:
Designed with thermal insulation to maintain the temperature of LPG during transport, preventing vaporization and ensuring material integrity.
Specifications
| Parameter | Brand | Model / Specification | Qty. / Remark |
|---|---|---|---|
| Design & Manufacturing Standard | — | Chinese Standard | — |
| Tank Head Type | — | Spherical Heads | — |
| Emergency Valve – Liquid Phase | Rego | A3213D300 | 2 pcs |
| Emergency Valve – Gas Phase | Rego | A3212R175 | 1 pc |
| Pressure Relief Valve (PRV) | Rego | A8436G | 2 pcs |
| Vent Valve | Rego | TSS3169 | 4 pcs |
| Liquid Adapter | Rego | 5769K, 3″, 3-1/4 ACME | 2 pcs |
| Gas Adapter | Rego | 5767H, 2″, 2-1/4 ACME | 1 pc |
| Liquid Adapter Cap | Rego | 3194-90, 3-1/4 ACME | 2 pcs |
| Gas Adapter Cap | Rego | 3184-90, 2-1/4 ACME | 1 pc |
| Pressure Gauge | Rego | A8400 | 1 pc |
| Angle Valve | MEC | MEJ415 | 1 pc |
| Thermometer | MEC | MEJ700 | 1 pc |
| Liquid Level Gauge | Rego | 9094TSM60 | 1 pc |
| Ball Valve | Japan KITZ | 300SCTAZM-FS DN80 | 2 pcs |
| Ball Valve | Japan KITZ | 300SCTAZM-FS DN50 | 1 pc |
| Axles | FUWA | 13-ton capacity per axle | 3 axles |
| Tires | Bridgestone | 11.00R22.5, Tubeless | 13 pcs |
| Rims | — | Steel Rims | 13 pcs |
| Landing Gear | JOST | 22.7T, 2-Speed, Separate Winding | — |
| Suspension | — | 10 Multi-Leaf Spring Suspension | — |
| Brake Type | — | Spring Brakes | — |
| Emergency Brake Valve | WABCO | — | — |
| ABS | Kemi | China Origin | — |
| Kingpin | JOST | 50# | — |
| Kingpin Height from Ground | — | 1,360 mm | To be confirmed when contract is signed |
| Ladder | — | Equipped | — |
| Mudguard | — | Plastic Mudguard | — |
| Anti-Static Cable | — | 16 mm² Cross-Sectional Area, 10 m Length | — |
| Mudguard Support Pipe Cap | — | Plastic Reflective Cap | — |

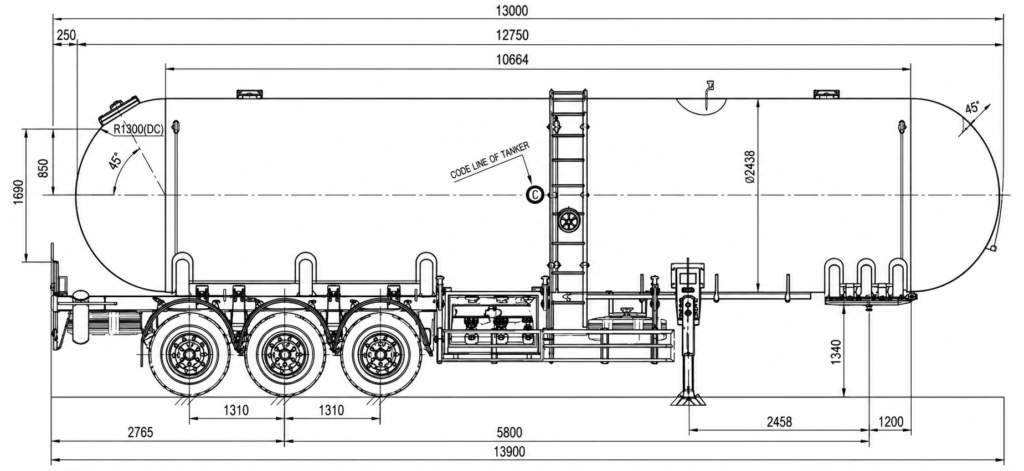

Technical Drawing
