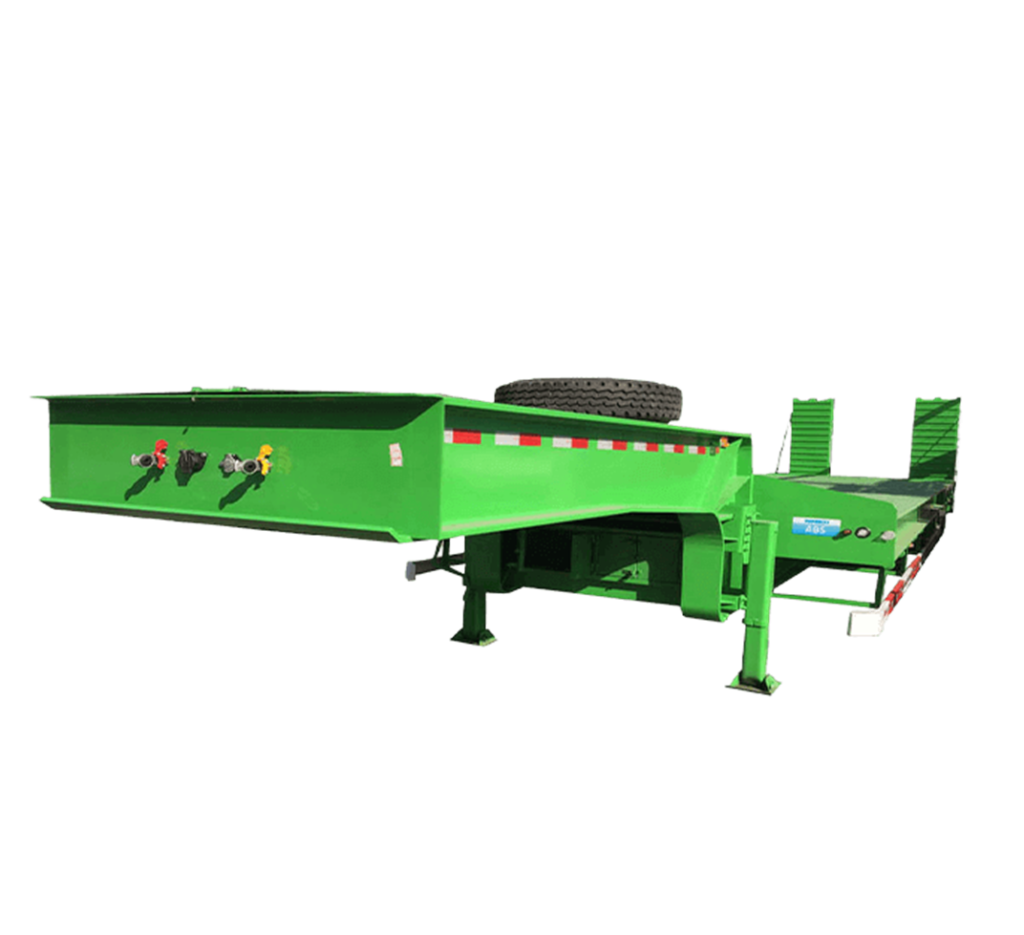

CIMC 70T 3 Axles Low Bed Trailer
This heavy-duty trailer with a 70-ton capacity and three axles provides reliable and stable transport for oversized loads, ensuring efficient and secure operations.
Features
70-Ton Capacity:
Three-Axle Support:
Reinforced Structure:
Enhanced Safety Features:
Specifications
Basic Parameters
| Item | Specification |
|---|---|

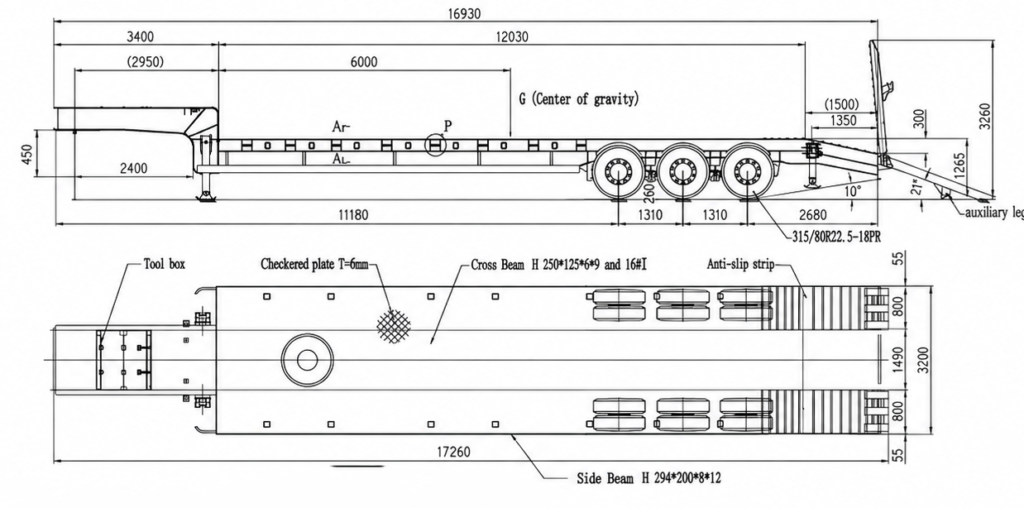

| Overall Dimension (L×W×H) | 13000 × 3000 × 3180 mm |
| King Pin Plate Height | H |
| Axle Space | 8715 + 1310 + 1310 mm |
| Tare Weight | 10,000 KGS |
| Payload Capacity | 50,000 KGS |
| G.V.W.R | 60,000 KGS |
| Main Beam (“I” Beam) | 550 / 25 / 30 / 14 mm |
Chassis & Mechanical System
| Item | Specification |
|---|---|

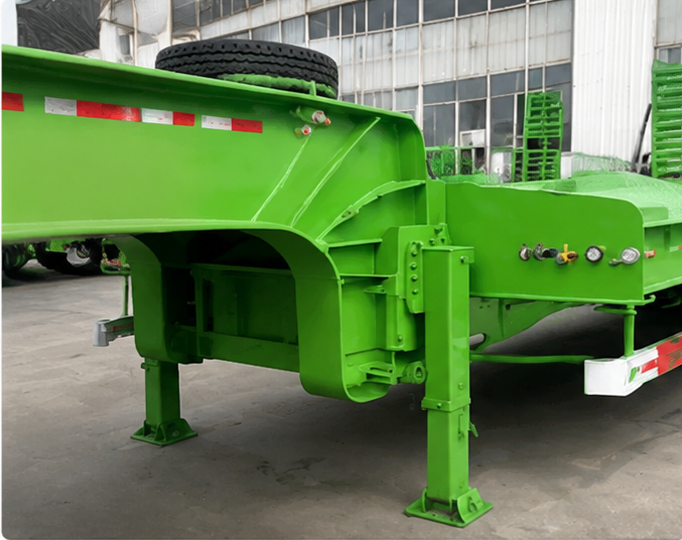

| Landing Gear | Two-speed manual operation type with sand shoe |
| Kingpin | 3.5″ Bolted Type |

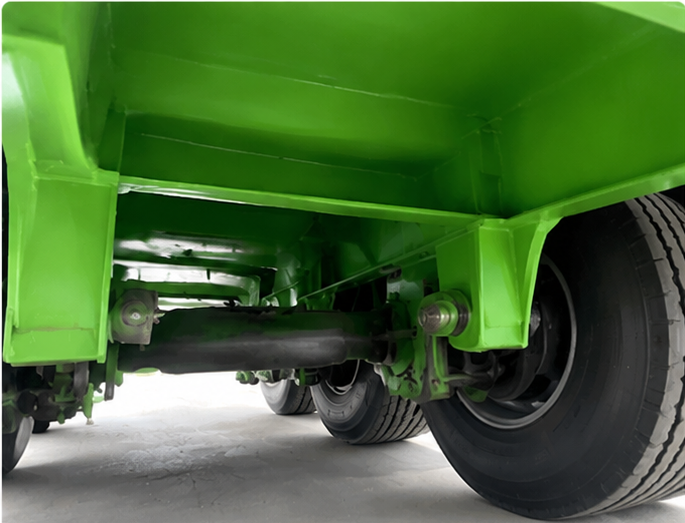

| Suspension | Mechanical Spring Suspension |
| Axle | FUWA Square Axle, 13 Ton Capacity/Set, 3 Pcs |
| Brake System | Dual Line Pneumatic Brake System with WABCO Brake Valve |
| Brake Chamber | Type 30/30 Spring Brake Chamber |
| ABS | No |
Tire & Accessories
| Item | Specification |
|---|---|

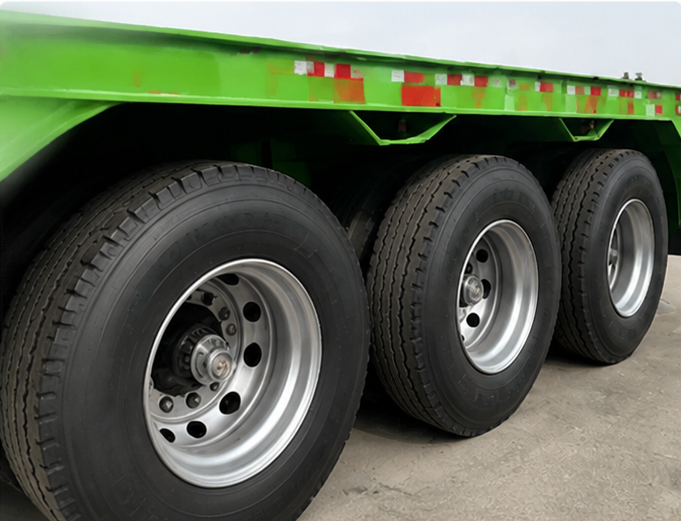

| Tire | 8.25R20, 12 Pcs |
| Rim | 6.5-20, 12 Pcs |
| Tool Box | 1 Unit (1 Meter) |
| Spare Tire Carrier | 2 Units |
Platform & Surface
| Item | Specification |
|---|---|
| Floor | 4mm Checker Plate |
| Painting | Customized According to Customer Requirements |
CIMC 70T 3 Axles Low Bed Trailer Video
FAQ – CIMC 70T 3 Axles Low Bed Trailer
1. What is the loading capacity of this low bed trailer?
This CIMC low bed trailer has a 50-ton payload capacity and a 60-ton GVWR, making it suitable for transporting heavy machinery, excavators, bulldozers, loaders, and other oversized equipment.
2. What are the dimensions of the trailer?
The standard dimensions are 13000mm × 3000mm × 3180mm (L×W×H). Customized dimensions are available according to different transportation requirements.
3. How many axles does this trailer have?
This low bed trailer is equipped with 3 axles, providing excellent stability and balanced load distribution for heavy-duty transportation.
4. What brand of axles are used on this trailer?
The trailer is equipped with FUWA 13-ton axles (3 pcs), offering strong load capacity, durability, and reliable performance.
5. What type of suspension system does it use?
The trailer uses a mechanical spring suspension system, which provides high durability, easy maintenance, and excellent performance under heavy loads.
6. Can this trailer transport excavators and construction equipment?
Yes. This low bed trailer is specially designed for transporting excavators, loaders, bulldozers, cranes, and other heavy construction machinery.
7. What type of floor platform does the trailer have?
The platform is equipped with a 4mm thick checker plate floor, providing strong anti-slip performance and long service life.

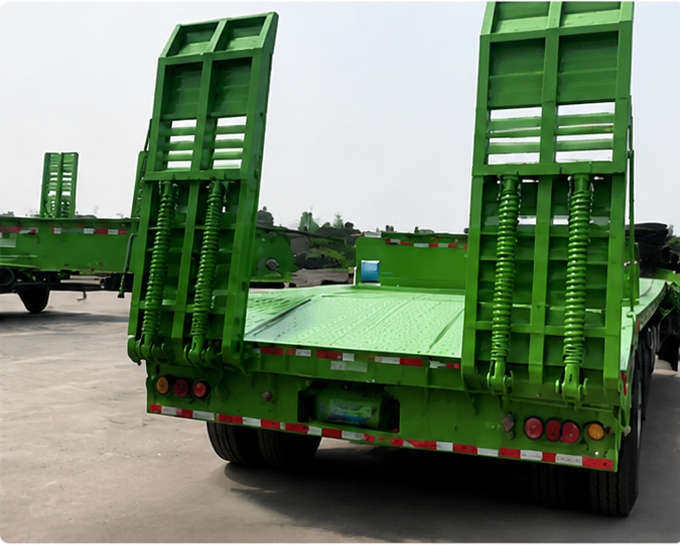

8. Does the trailer come with loading ramps?
Yes. The trailer can be equipped with rear loading ramps to make loading and unloading heavy equipment easier. Hydraulic ramps are also available as an option.
9. What braking system does this trailer use?
The trailer is equipped with a dual-line pneumatic braking system with WABCO brake valve, ensuring safe and reliable braking performance.
10. Does this low bed trailer have ABS?
The standard configuration does not include ABS. However, ABS can be installed according to customer requirements and local transportation regulations.
11. What tires are used on this trailer?
The trailer is equipped with 12 units of 8.25R20 tires, designed for heavy-duty transportation applications.
12. What is the kingpin specification?
The trailer uses a 3.5-inch bolted kingpin, providing a strong and secure connection between the trailer and tractor truck.
13. Can the trailer color be customized?
Yes. The painting color can be customized according to customer requirements.
14. Which markets are suitable for this low bed trailer?
This CIMC low bed trailer is widely used in Africa, Middle East, Southeast Asia, South America, and other regions where heavy equipment transportation is required.
15. What information is needed to get a quotation?
To provide an accurate quotation, please share:
- Required loading capacity
- Cargo type and dimensions
- Trailer quantity
- Destination country
- Required specifications or configurations
