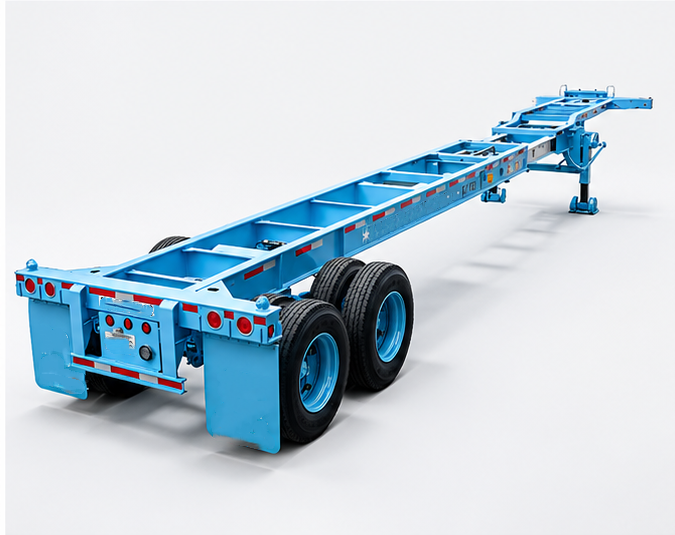

45ft Skeletal Container Chassis

This skeletal chassis is engineered for the efficient transport of 45-foot containers, offering a lightweight and robust solution for logistics and shipping operations. Its durable construction ensures stability, while the design allows for easy loading and unloading of containers.

INQUIRY

Features

Specifically designed to securely accommodate standard 45-foot containers, ensuring efficient transport.
Constructed from high-strength materials to reduce weight, enhancing fuel efficiency without compromising durability.
Features adjustable locks for secure attachment of various container types, facilitating quick loading and unloading.
Built to withstand heavy loads and harsh conditions, ensuring reliable performance in demanding logistics environments.

Specifications

PARAMETERDimensionL*W*H: 12404X2480X H(mm)
Axle space6790+1310+1310mm
Curb weight7,250kg
Payload50,000kg

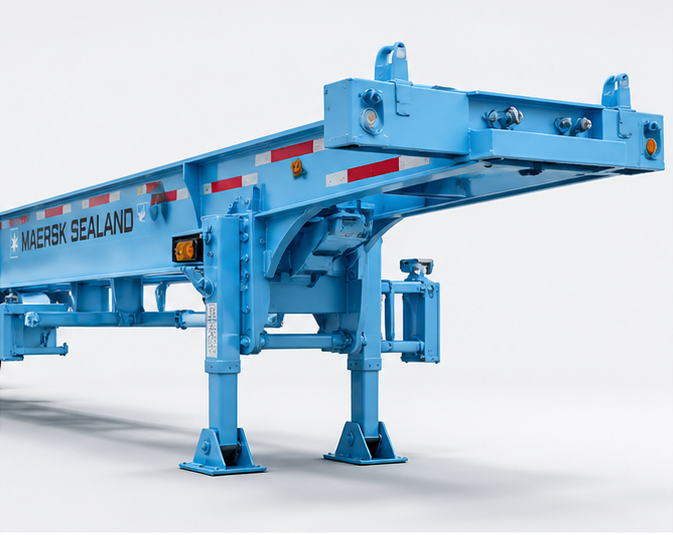

OEMLanding gearTSU 28ton
Kingpin2″(50#) bolted type, JOST
Brake systemDual line pneumatic brake system. WABCO valve
Brake chamberType 30/30 brake chamber on three-axle
SuspensionSpring suspension
Leaf Spring7pcs
ABSNo

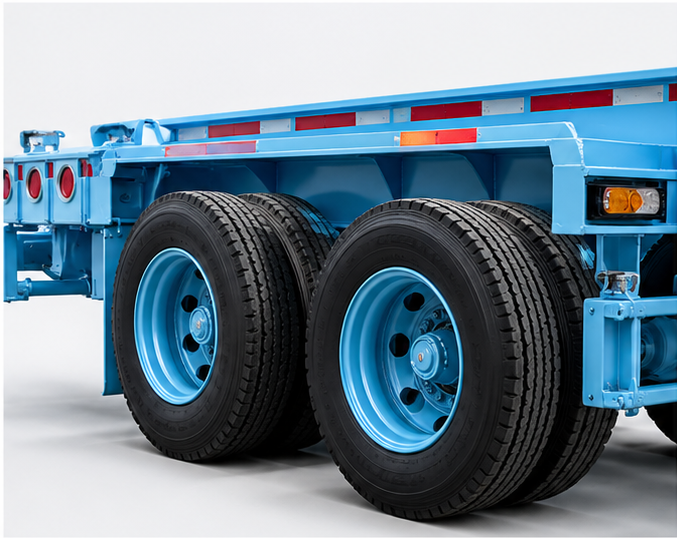

AxleFUWA axle, 13-ton capacity/set,3pcs
Tire11R22.5-16PR, 13pcs, Linglong Brand
Rim8.25-22.5,13pcs, made in China
Twist locks8pcs
Toolbox1pcs
Spare tire carrier1pcs
OTHERSFloor3mm checker plate
PaintingAs customer request
