3 Axles Container Chassis Semi-trailer
This semi-trailer features a 3-axle configuration designed for the secure transport of containers, ensuring enhanced stability and weight distribution. Built for durability and efficiency, it is ideal for logistics operations that require transporting standard and oversized containers.
Features
3-Axle Stability:
Provides improved stability and weight distribution, allowing for safer transport of heavy containers over long distances.
Durable Construction:
Made from high-strength steel to withstand demanding conditions and ensure long-lasting performance.
Compatible with Various Containers:
Designed to accommodate standard container sizes, making it versatile for different shipping needs.
Efficient Loading and Unloading:
Equipped with adjustable twist locks for secure container attachment, facilitating quick and easy loading and unloading operations.
Specifications
| PARAMETER | Dimension | L*W*H: 12404X2480X H(mm) |
| Axle space | 6790+1310+1310mm | |
| Curb weight | 7,250kg | |
| Payload | 50,000kg | |

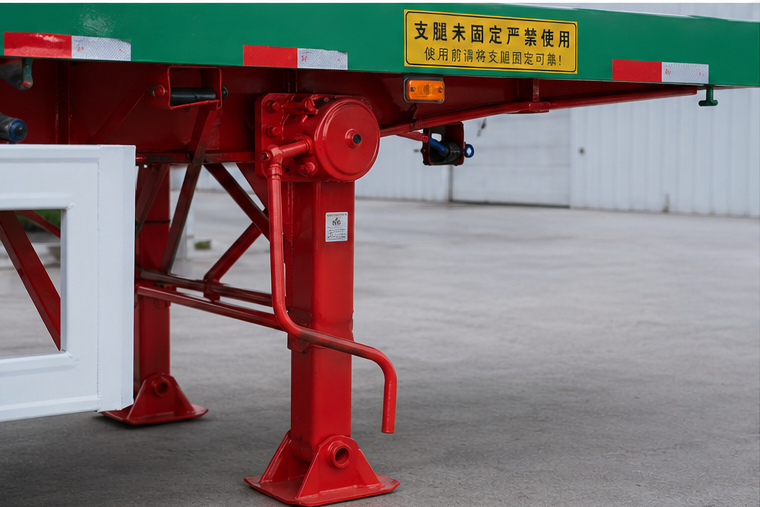

| OEM | Landing gear | TSU 28ton |
| Kingpin | 2″(50#) bolted type, JOST | |
| Brake system | Dual line pneumatic brake system. WABCO valve | |
| Brake chamber | Type 30/30 brake chamber on three-axle | |
| Suspension | Spring suspension | |
| Leaf Spring | 7pcs | |
| ABS | No | |

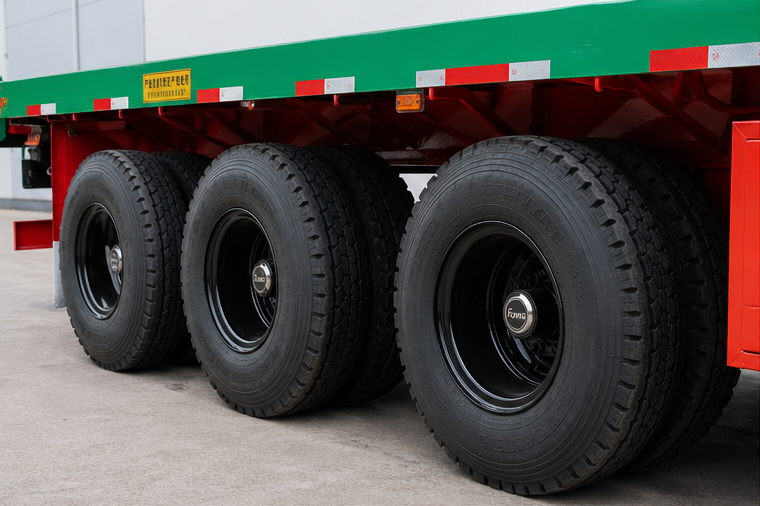

| Axle | FUWA axle, 13-ton capacity/set,3pcs | |
| Tire | 11R22.5-16PR, 13pcs, Linglong Brand | |
| Rim | 8.25-22.5,13pcs, made in China | |
| Twist locks | 8pcs | |
| Toolbox | 1pcs | |
| Spare tire carrier | 1pcs | |

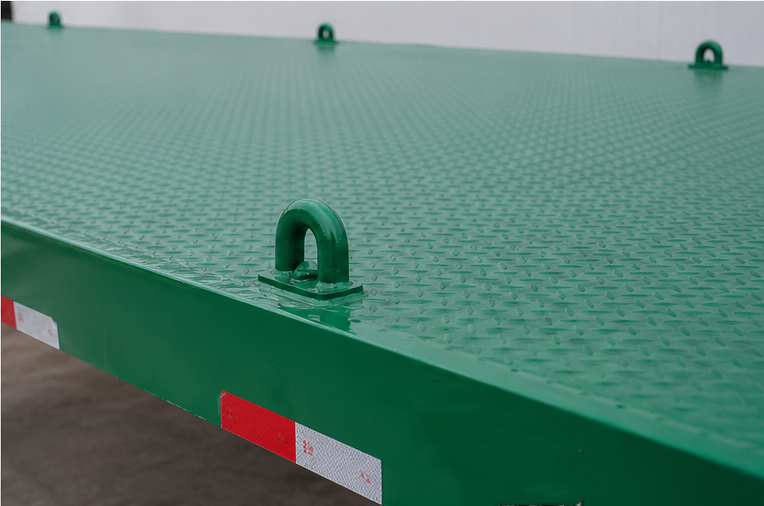

| OTHERS | Floor | 3mm checker plate |
| Painting | As customer request |
