CIMC 2 Axle 42 ft Hydraulic Gooseneck Low Bed Semi Trailer 40 Tons
Engineered for transporting heavy equipment, this two-axle low bed trailer offers a 40-ton load capacity with hydraulic ramps for seamless loading and unloading operations.
Features
40-Ton Load Capacity:
Hydraulic Ramps:
Two-Axle Design:
Durable Construction:
Specifications
| PARAMETER | Dimension | L*W*H: 12880X3000X3380 (mm) |
| Load platform size | L*W: 8500x3000mm | |
| Curb weight | 8,800kg | |
| Loading capacity | 40,000kg | |
| OEM | Landing gear | JOST A400 |
| Kingpin | JOST, 2″(50#) bolted type | |
| Brake system | Dual line pneumatic brake system. WABCO valve | |
| ABS | No | |
| Brake chamber | Type 30/30 spring brake chamber on two axles | |
| Suspension | Spring suspension | |
| Leaf spring | 8pcs | |
| Axle | FUWA square axle, 16-ton capacity/set,2pcs | |
| Tire | 12R20, 9pcs, brand Linglong, made in China | |
| Rim | 8.5-20, 10 Holes ISO, 9pcs, made in China | |
| Spare tire carrier | 1 pcs | |
| OTHERS | Ramp | Spring loaded Size: 2500×800 mm (Length X Width) |
| Painting | As customer request |

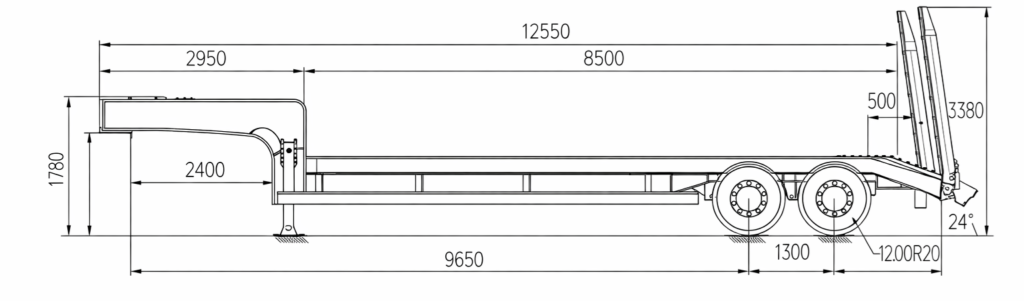

Technical Drawing
CIMC 2 Axle 42 ft Hydraulic Gooseneck Low Bed Semi Trailer - FAQ
1. What is the weight capacity of this trailer?
The trailer has a loading capacity of 40,000 kg (40 tons), making it ideal for transporting heavy equipment and machinery.
2. What is the curb weight of the trailer?
The curb weight of the trailer is 8,800 kg, allowing it to carry large and heavy loads without compromising structural strength.
3. What are the overall dimensions of the trailer?
The trailer dimensions are as follows:
- Length: 12,880 mm
- Width: 3,000 mm
- Height: 3,380 mm
The load platform size is 8,500 x 3,000 mm, offering ample space for various types of cargo.
4. What type of suspension system does the trailer use?
This trailer is equipped with a spring suspension, which ensures a smooth and stable ride, even when transporting heavy loads.
5. What kind of landing gear does the trailer have?
The trailer features JOST A400 landing gear, known for its high reliability and heavy-duty performance.
6. Is the trailer equipped with an ABS system?
No, this model does not come with an ABS system.

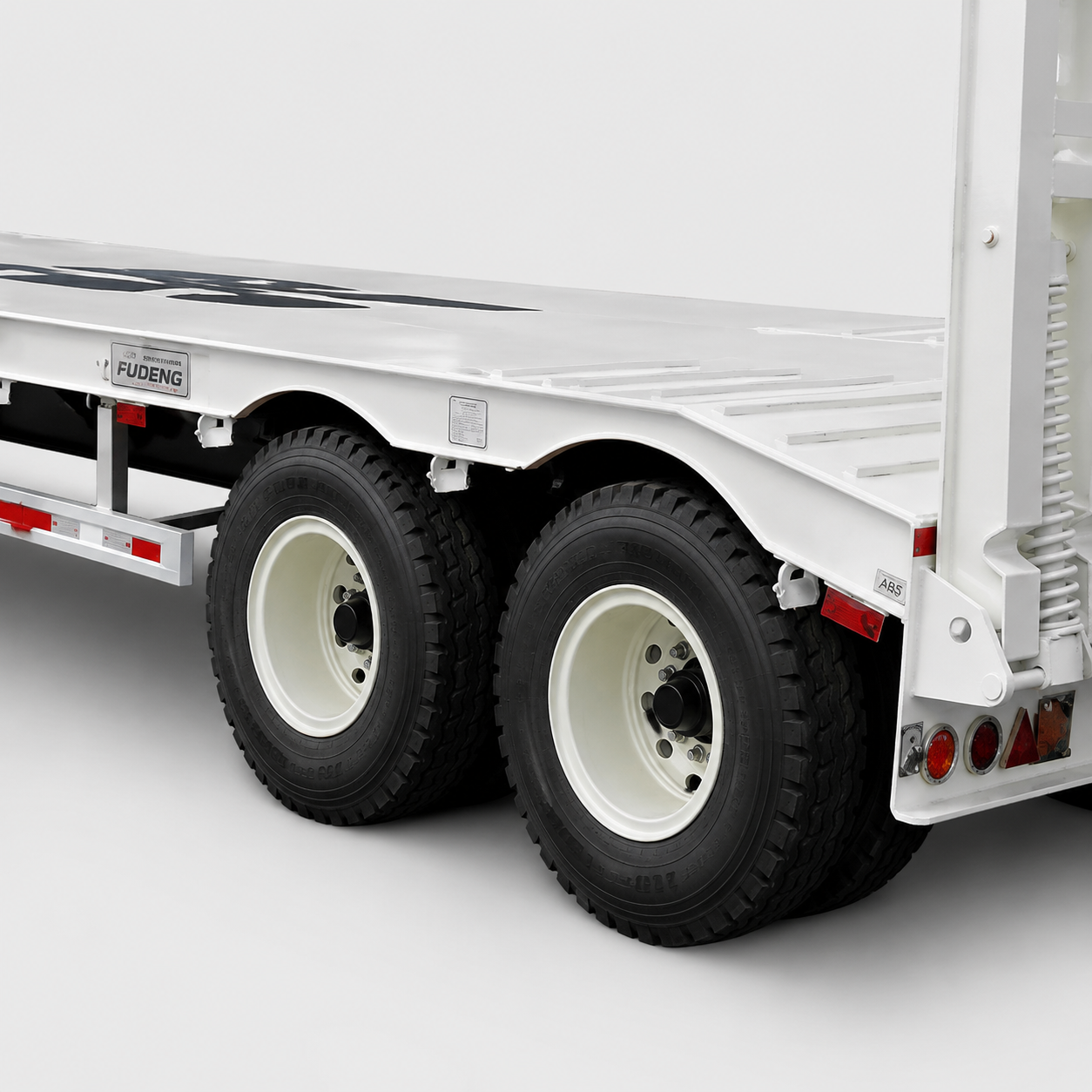

7. What tires are used on this trailer?
The trailer is fitted with 12R20 tires, totaling 9 tires, manufactured by Linglong in China. These tires are known for their durability and strength.
8. What type of brake system is installed on the trailer?
This trailer comes with a dual-line pneumatic brake system with a WABCO valve, ensuring effective and responsive braking.

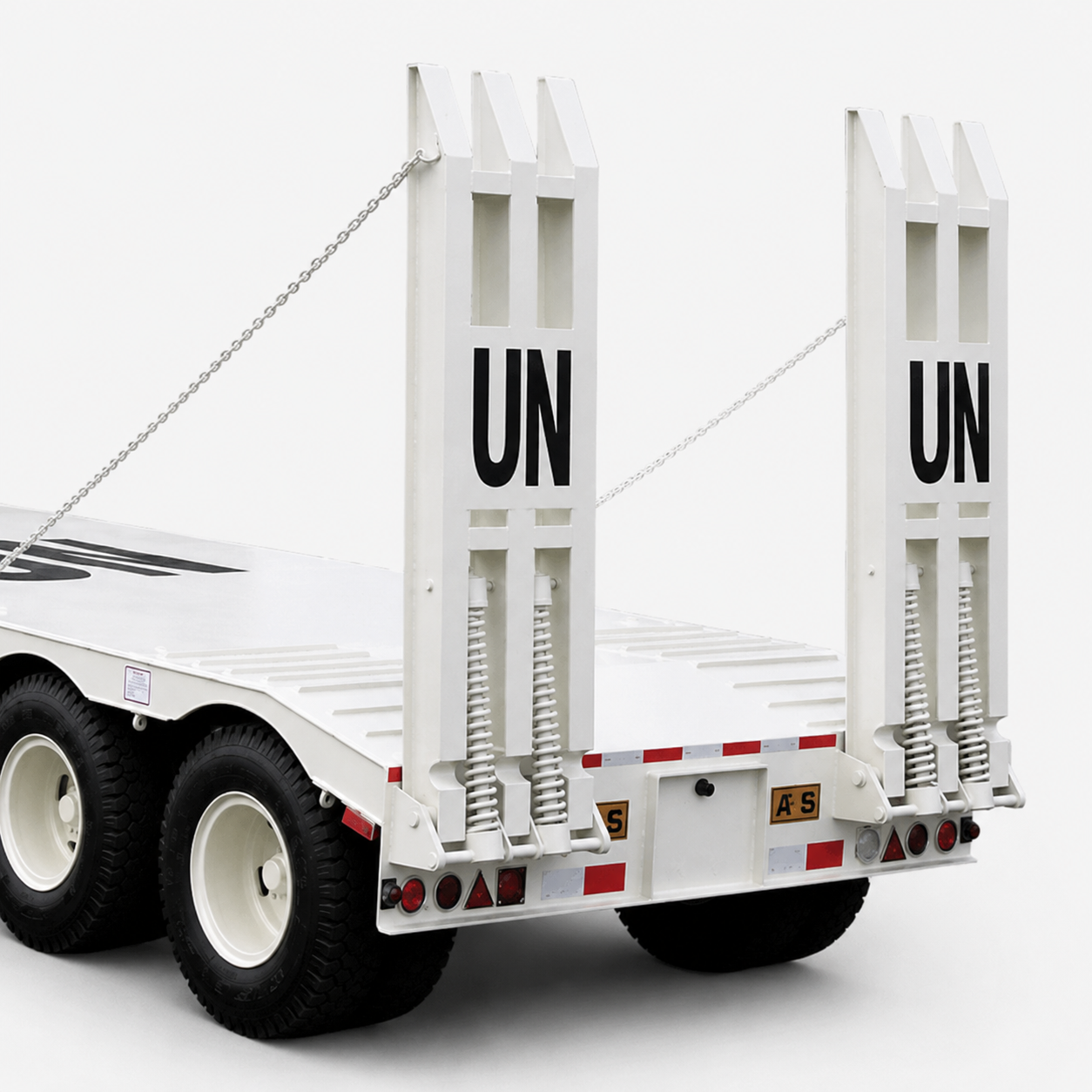

9. How are the ramps operated?
The trailer is equipped with spring-loaded ramps, which are designed to provide a 24° angle for smooth and efficient loading and unloading.
10. What axles are used on this trailer?
The trailer uses FUWA square axles, each with a 16-ton capacity, ensuring excellent stability and load distribution.
11. Can I customize the paint on the trailer?
Yes, the trailer’s painting can be customized according to your specific requirements.
12. How many spare tire carriers are included?
The trailer comes with one spare tire carrier, allowing you to store an additional tire for emergencies.
13. What are the dimensions of the loading ramp?
The loading ramp measures 2,500 x 800 mm (Length x Width) and is spring-loaded for easy operation.
