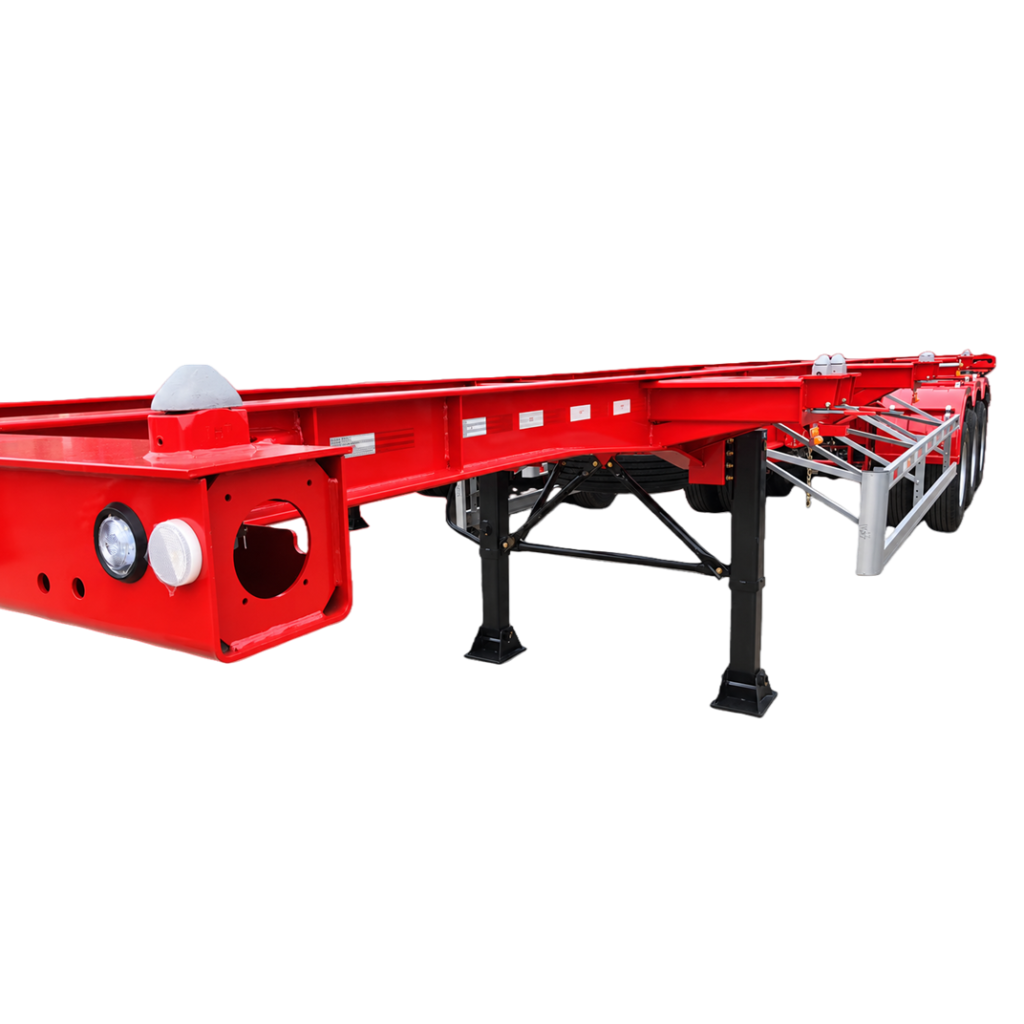

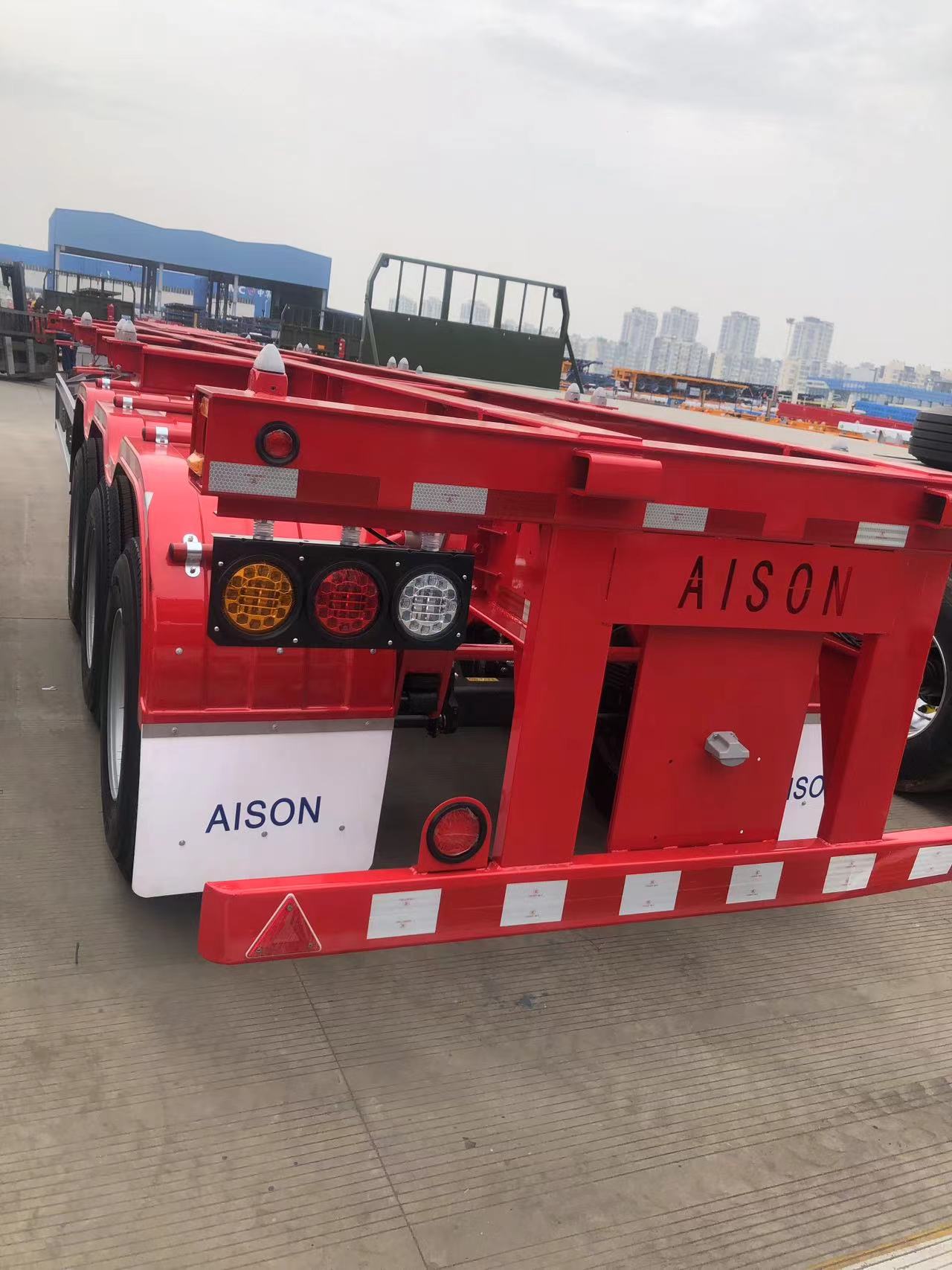

CIMC 3 Axle 40 Ft 50 Ton Skeletal Container Chassis
This skeletal chassis is designed for the efficient transport of 40-foot containers, providing a durable and lightweight solution for logistics operations. Its robust construction ensures stability and reliability, making it ideal for shipping and freight transport.
Features
40-Foot Compatibility:
Specifically designed to accommodate standard 40-foot containers, ensuring secure and efficient transport.
Lightweight Construction:
Made from high-strength materials that reduce weight, improving fuel efficiency without sacrificing durability.
Adjustable Twist Locks:
Equipped with adjustable twist locks for secure container attachment, facilitating quick and easy loading and unloading.
Robust Frame Design:
Built to endure heavy loads and tough conditions, ensuring long-lasting performance in demanding logistics environments.
Specifications
| Category | Parameter | Specification |
|---|---|---|
| General | Type | 3-Axle Skeletal Semi-Trailer for carrying dry cargo ISO containers, double tire |
| Container Application | 4 × 10′ containers | |
| Tank Container | Not permitted | |
| Model | Not specified | |
| Dimensions | Overall Dimensions (L × W × H) | 12,391 × 2,480 × H mm |
| Front Overhang | 1,150 mm | |
| Wheelbase | 7,160 + 1,310 mm | |
| Weight | Tare Weight | Approx. 5,700 kg |
| Payload | 50,000 kg | |
| G.V.W.R. | 55,700 kg | |

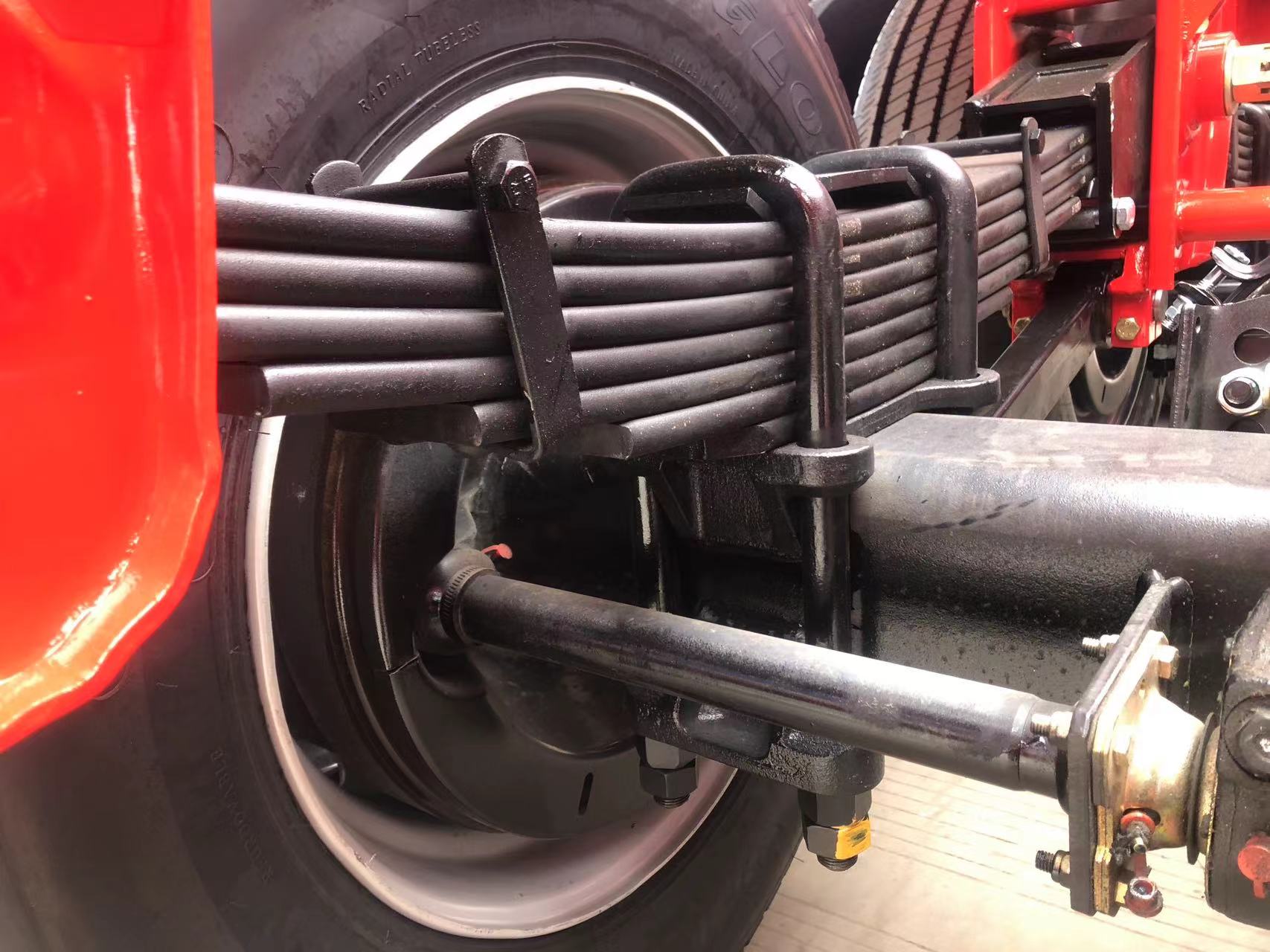

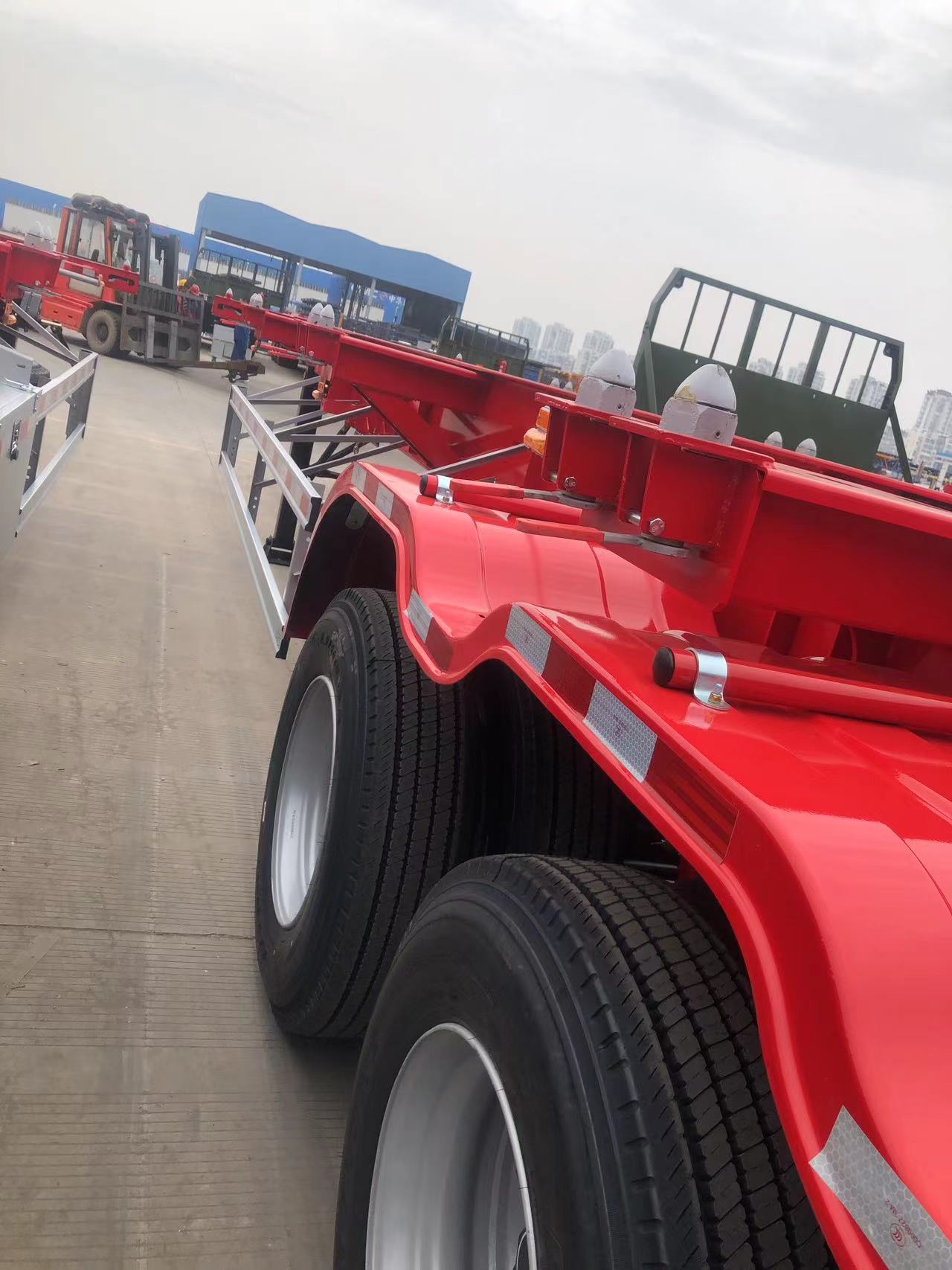

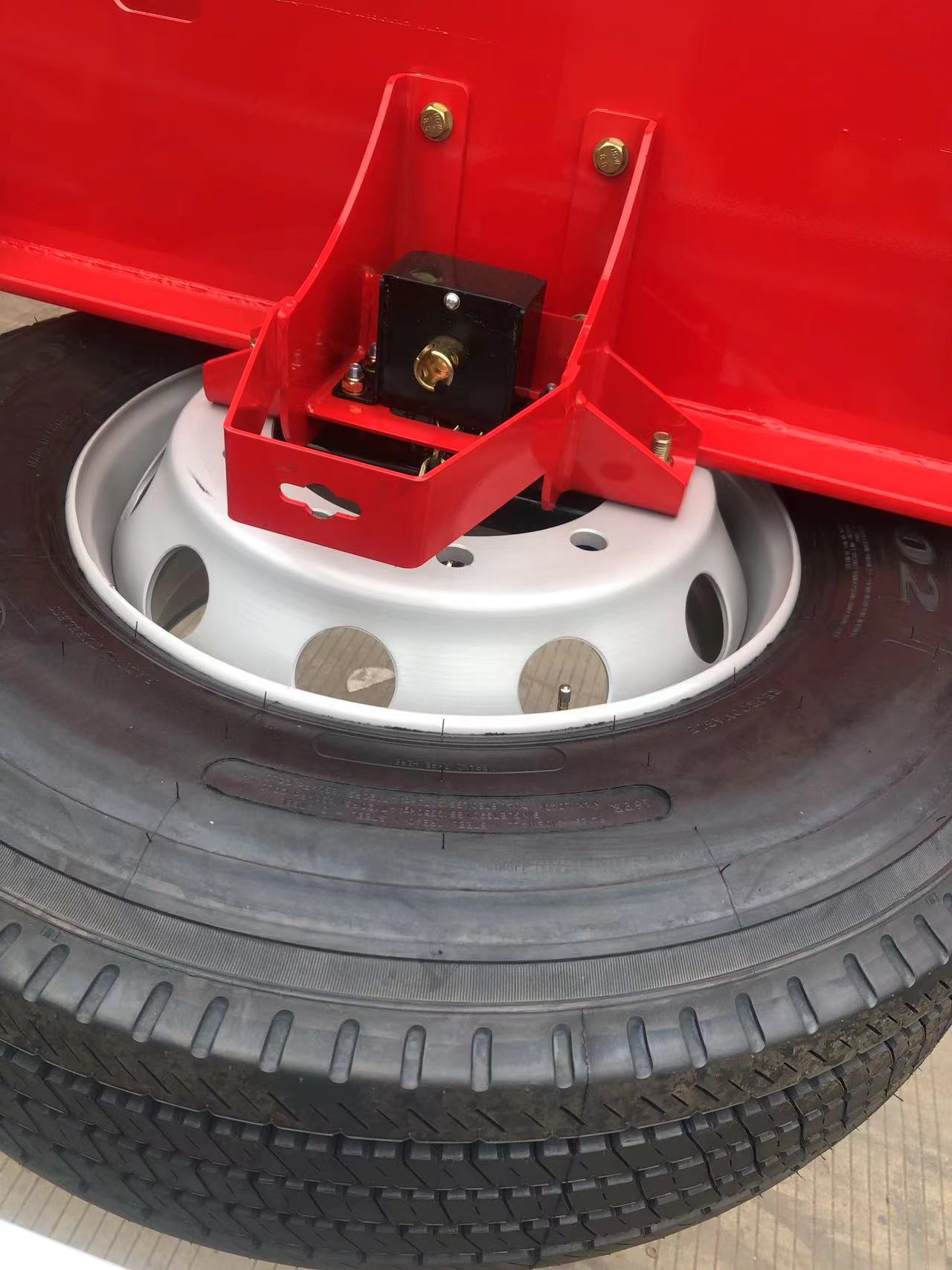

| Running Gear & Frame | Suspension | Tri-axle mechanical suspension with equalizer, THT brand |
| Leaf Spring | 7-leaf spring | |
| Axles | 3 × FUWA square axles | |
| Axle Capacity | 13 tons per axle | |
| Rims | 9.0-22.5, 10-hole steel disc wheels | |
| Rim Quantity | 13 pcs | |
| Tires | 295/80R22.5-18PR | |
| Tire Quantity | 13 pcs | |
| King Pin | JOST 2″ bolt-on type | |
| Twist Locks | 16 sets | |
| Brake System | Brake Type | Dual-line pneumatic brake system |
| Brake Valve | WABCO | |
| ABS | Without ABS | |
| Brake Chambers | Type 30/30 double spring brake chambers on all axles | |
| Electrical System | Voltage | 24V |
| Front Marker Lamps | White | |
| Side Marker Lamps | Amber | |
| Rear Lamps | Red | |
| Landing Gear | Landing Leg Type | Two-speed manual operation type with sand shoe, left-side operation |
| Landing Gear Model | TSU 28T | |
| Static Capacity | 80 tons | |
| Lifting Capacity | 28 tons | |
| Painting & Marking | Color | RAL 3031 |
| Marking Standard | Complies with Chinese standard |

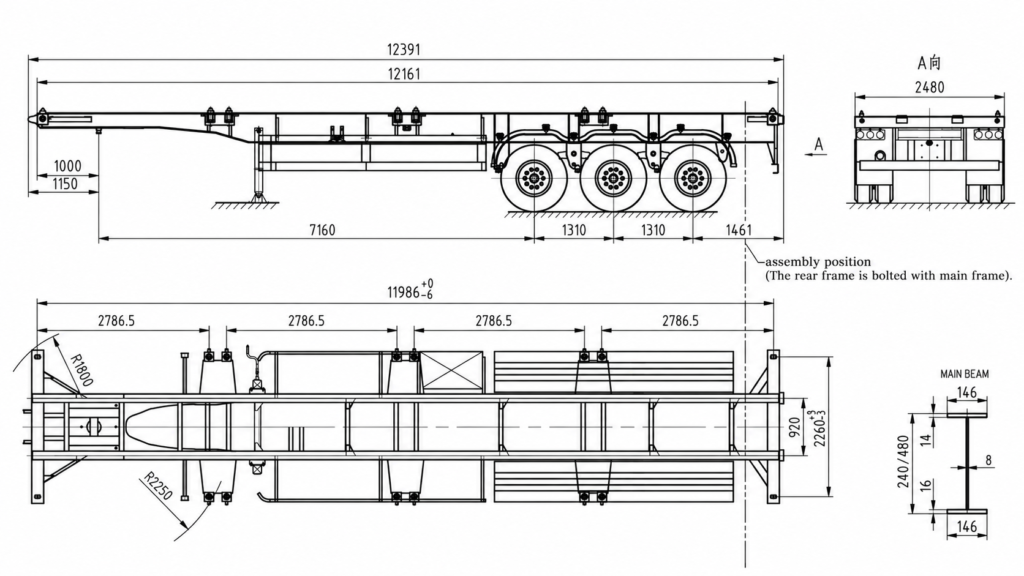

Technical Drawing
