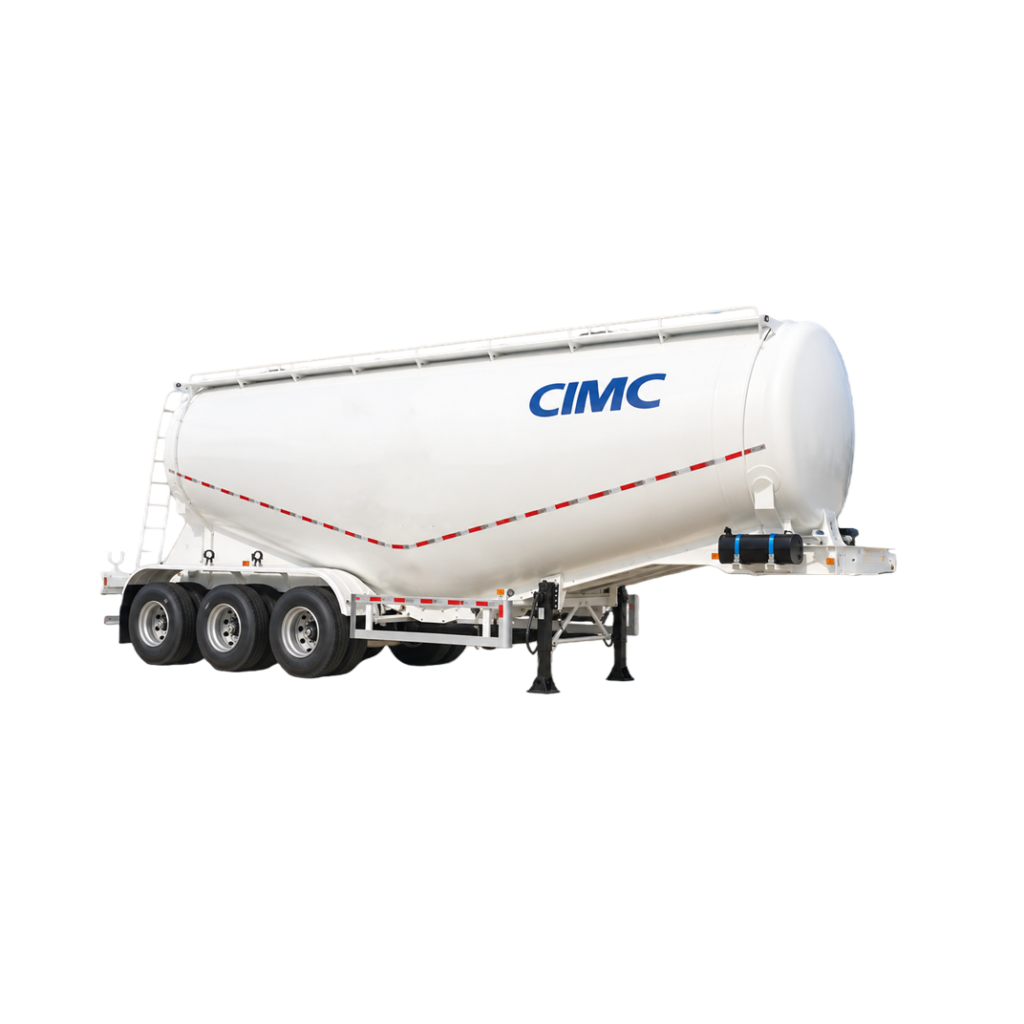

CIMC 3 Axle 45m³ Bulk Cement Tank Semi Trailer
This semi-trailer is designed for the efficient transport of bulk cement, featuring a 45 cubic meter capacity. Built for durability and stability, it is ideal for construction and cement supply operations, ensuring safe and effective handling of heavy loads.
Features
45 Cubic Meter Capacity:
Provides ample storage for transporting large quantities of bulk cement, reducing transportation frequency and costs.
Robust Construction:
Made from high-strength materials to withstand the rigors of bulk cement transport, ensuring long-lasting performance.
Efficient Unloading System:
Equipped with a pneumatic unloading mechanism for rapid discharge of cement, minimizing downtime at job sites.
Stability and Safety Features:
Designed with a low center of gravity and reinforced structure, ensuring safe transport over various terrains.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Bulk Powder Material Transport Semi-Trailer |
| Model | SDW9403GXH |
| Quantity | 1 Unit |
| Total Tank Capacity | 45 m³ |
| Rated Payload | Not Specified |
| Tank Compartment / Cone Quantity | 1 |
| Tank Body Thickness | 3 mm, T610L high-strength steel |
| Tank Head Thickness | 4 mm, T610L high-strength steel |
| Tank Body Color | TBD |
| Chassis Color | TBD |
| King Pin | JOST 90#, assembled type |
| Air Compressor | Fuda 12/2 twin-cylinder air compressor |
| Power Unit / Diesel Engine | Weichai Huafeng 4102 diesel engine |
| PTO Factory Equipped | No |
| Manhole Covers | 2 pcs, internal-locking type |
| Discharge Hose | 7 m, steel-wire reinforced hose |
| Suspension | Heavy-duty mechanical suspension |
| Leaf Springs | Reinforced type, 10 leaves |
| Axles | 3 × 13T CIMC axles |
| Brake Shoe / Lining | 220 mm widened brake lining |

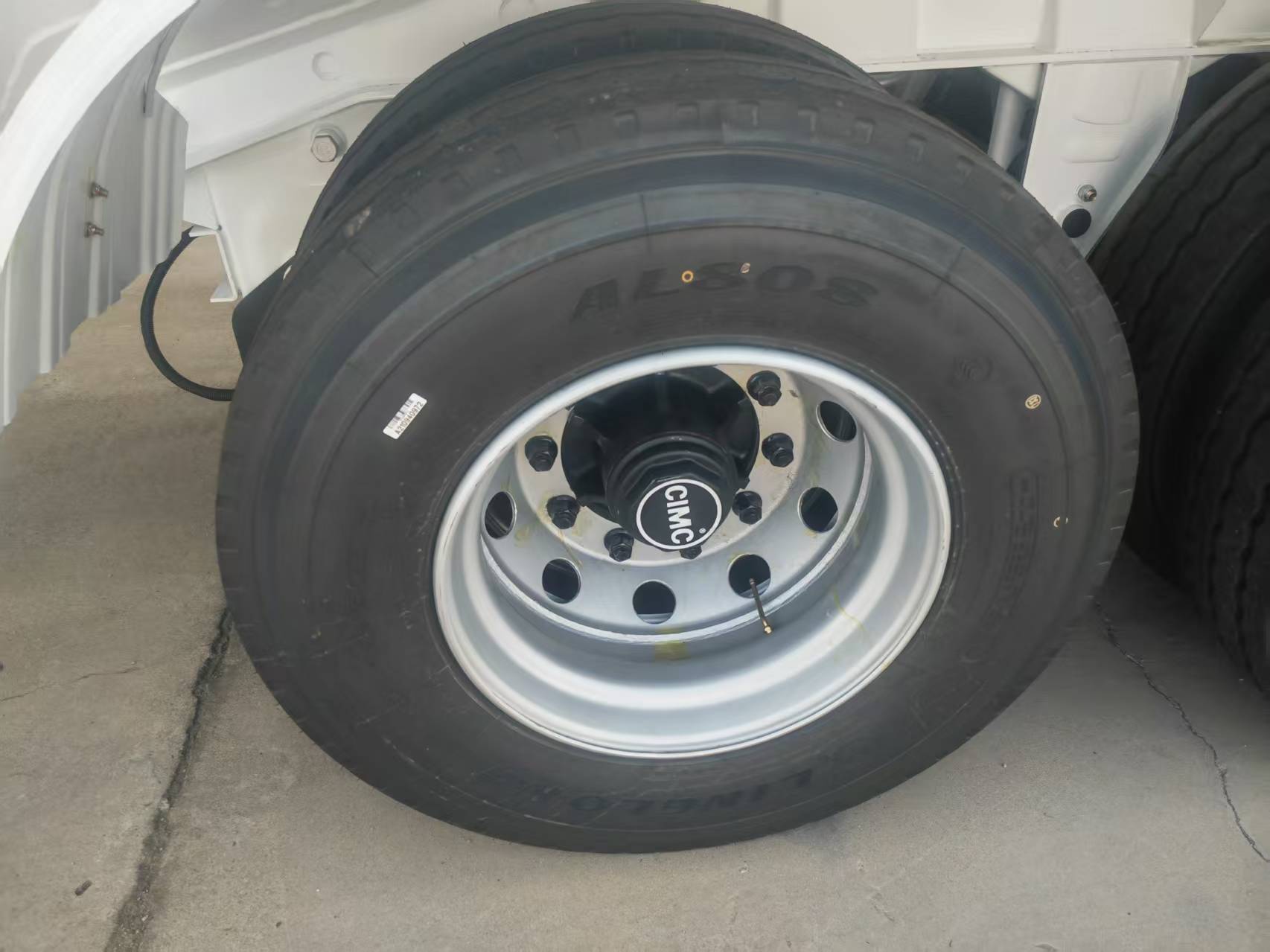

| Tires | Linglong 12.00R22.5-18PR |
| Tire Quantity | 13 pcs |
| Rims | 9.0-22.5 steel rims |
| Rim Quantity | 13 pcs |
| Landing Gear | JOST E100, 17-inch carbon steel landing gear |
| Brake Chambers | 4 double-chamber + 2 single-chamber brake chambers |
| ABS | WABCO 4S/2M ABS |
| Brake Valve | Imported WABCO brake valve |
| Tool Box | Rear-mounted |
| Spare Tire Carrier | Standard |
| Maximum Working Pressure | 0.2 MPa |
| Overall Dimensions | TBD |

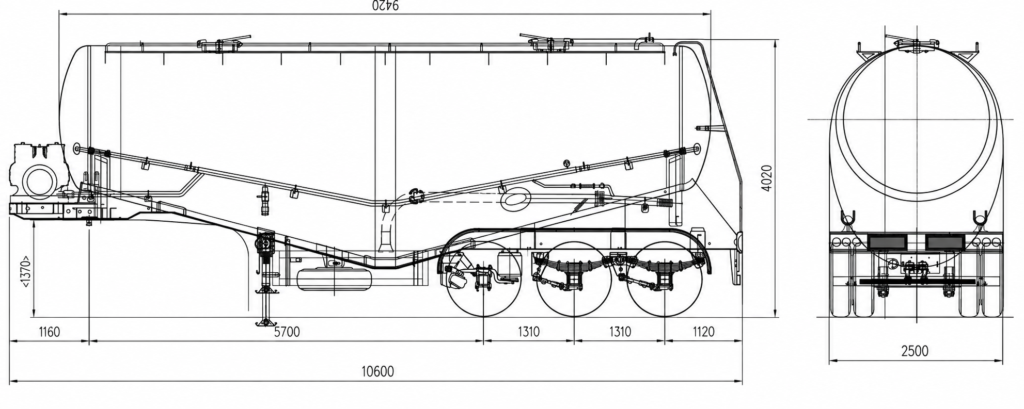

Technical Drawing
