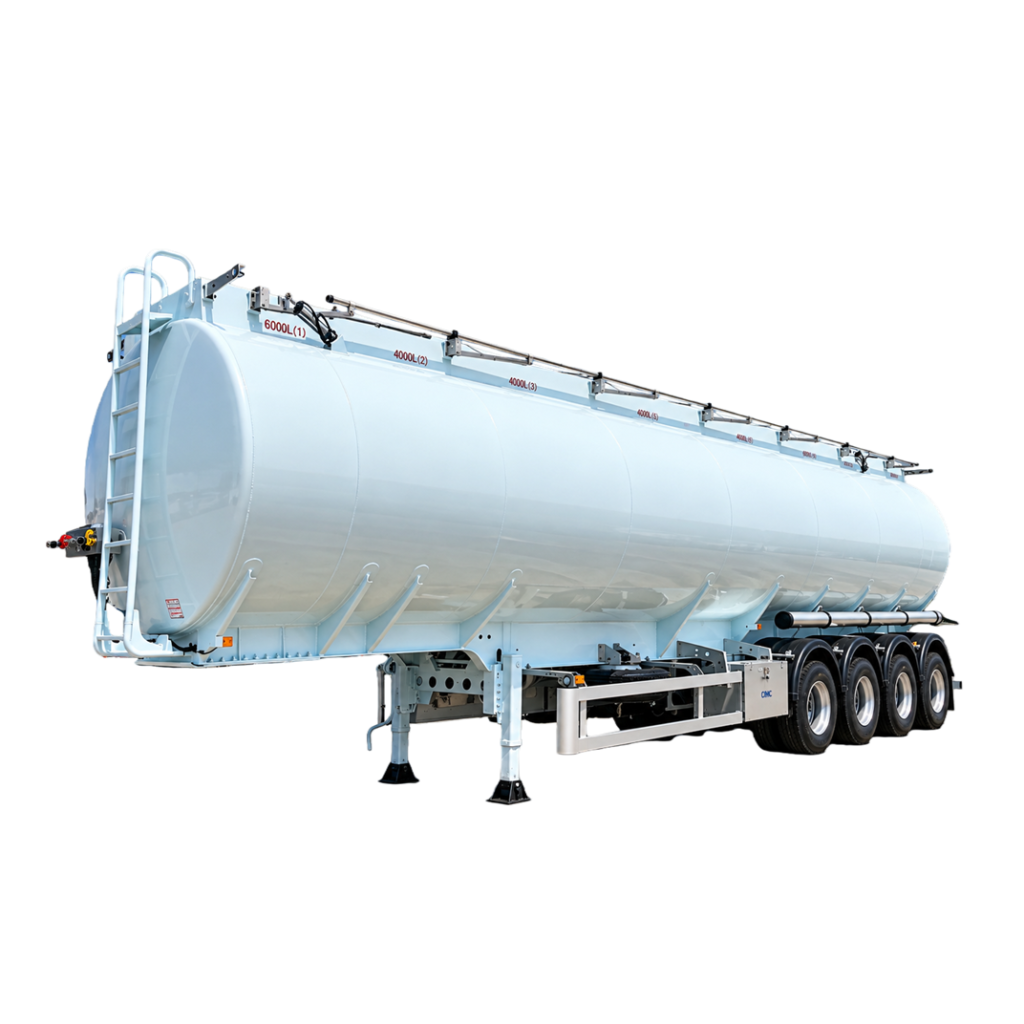

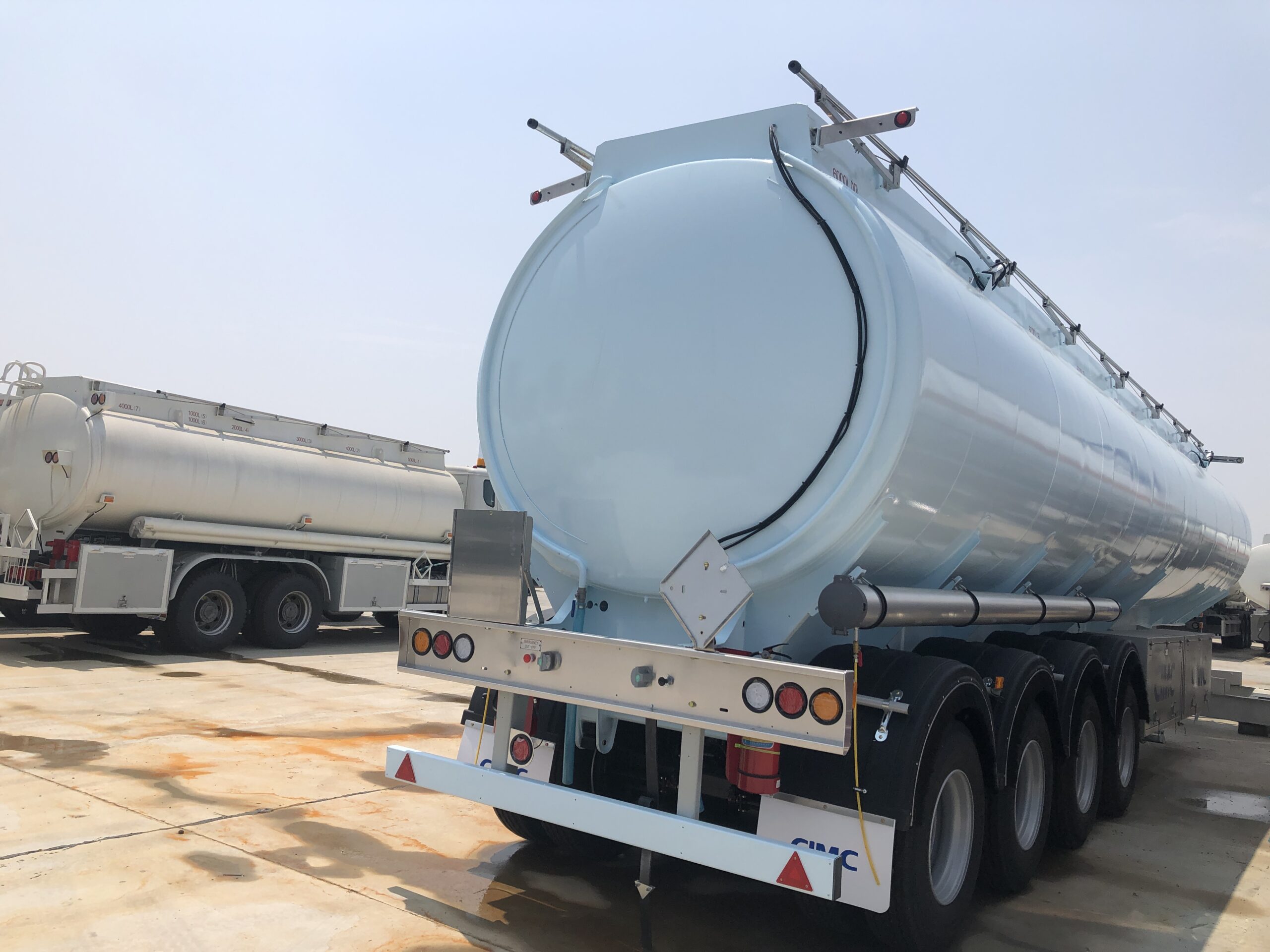

CIMC 4 Axle Fuel Tanker 50kL 10 Compartments
This fuel tanker has a 50,000-liter capacity and is divided into 10 compartments for safe and efficient transport of multiple fuel types. Designed for optimal stability and load distribution, it ensures safe delivery across long distances with minimal risk of contamination.
Features
50kL Capacity:
Offers a large 50,000-liter storage capacity, ideal for bulk fuel transport needs.
10 Compartments:
Multiple compartments prevent cross-contamination and allow for simultaneous transport of different fuel types.
4 Axle Design:
Provides enhanced stability and load distribution, ensuring safe and reliable transport.
Safety Features:
Equipped with advanced safety systems, including emergency valves and pressure release devices, for secure fuel transport.
Specifications
| Category | Parameter | Specification |
|---|---|---|
| Tank Body | Tank Capacity | 50 KL / 50,000 L / 50 m³ |
| Compartments | 10 compartments | |
| Tank Material | Carbon steel | |

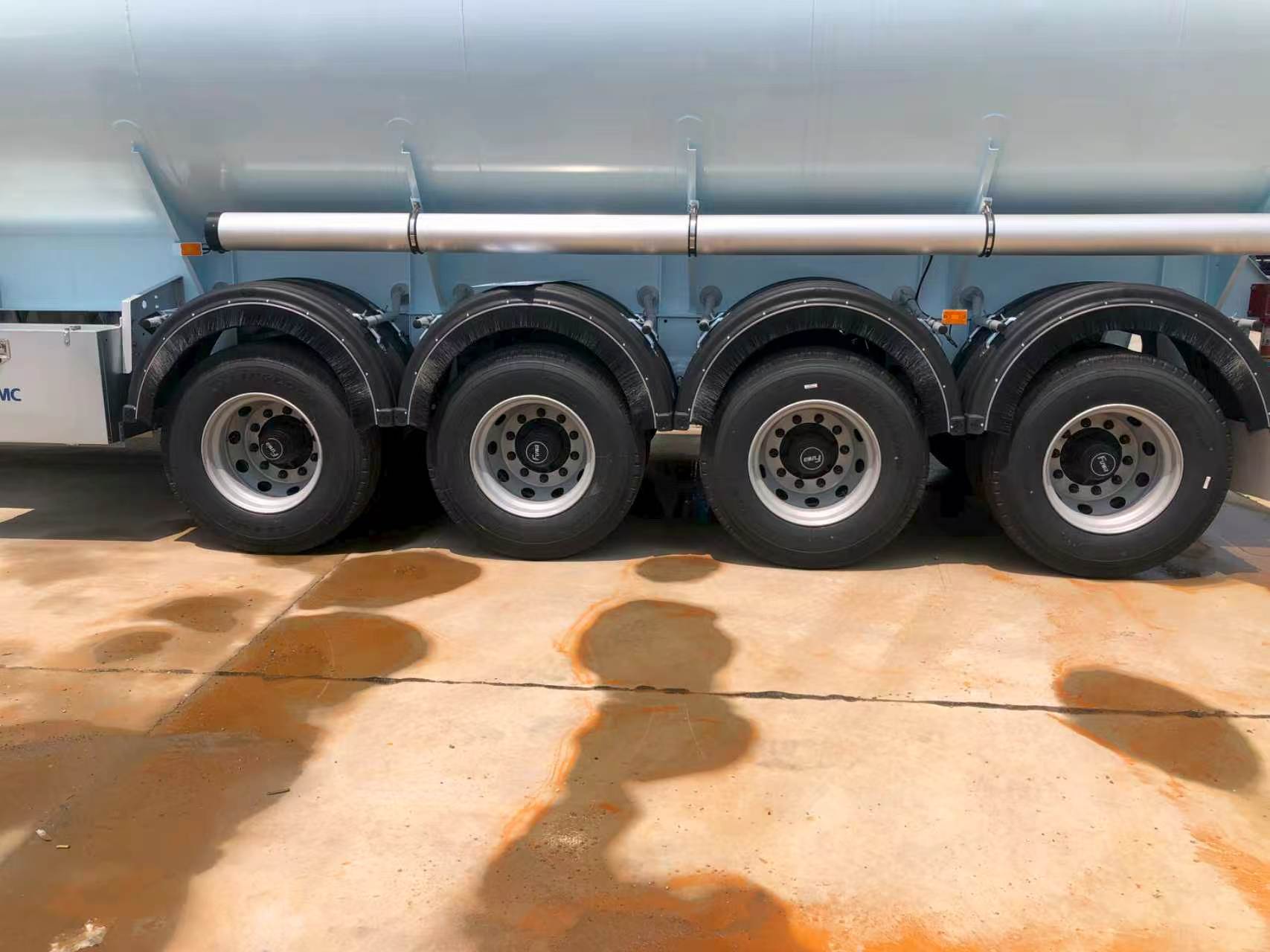

| Axle & Suspension | Axles | 4 × FUWA 13T axles |
| Brake Lining | 220 mm | |
| Suspension | 8-leaf spring suspension | |
| Brake System | Brake System | Spring brake system on 4 axles |
| Brake Valve | WABCO valve | |
| ABS | Without ABS | |
| Landing Gear & Coupling | Landing Gear | TSU 28T synchronized landing gear |
| Kingpin | JOST 3.5-inch, assembled type | |
| Wheels & Tires | Rims | 8.25 × 22.5 steel rims, China brand |
| Tires | Linglong 11R22.5-16PR | |
| Tire Quantity | 17 pcs, including spare tire | |
| Spare Tire Carrier | 1 pc | |
| Loading & Discharge System | Manhole | 20-inch aluminum alloy manhole, China brand |

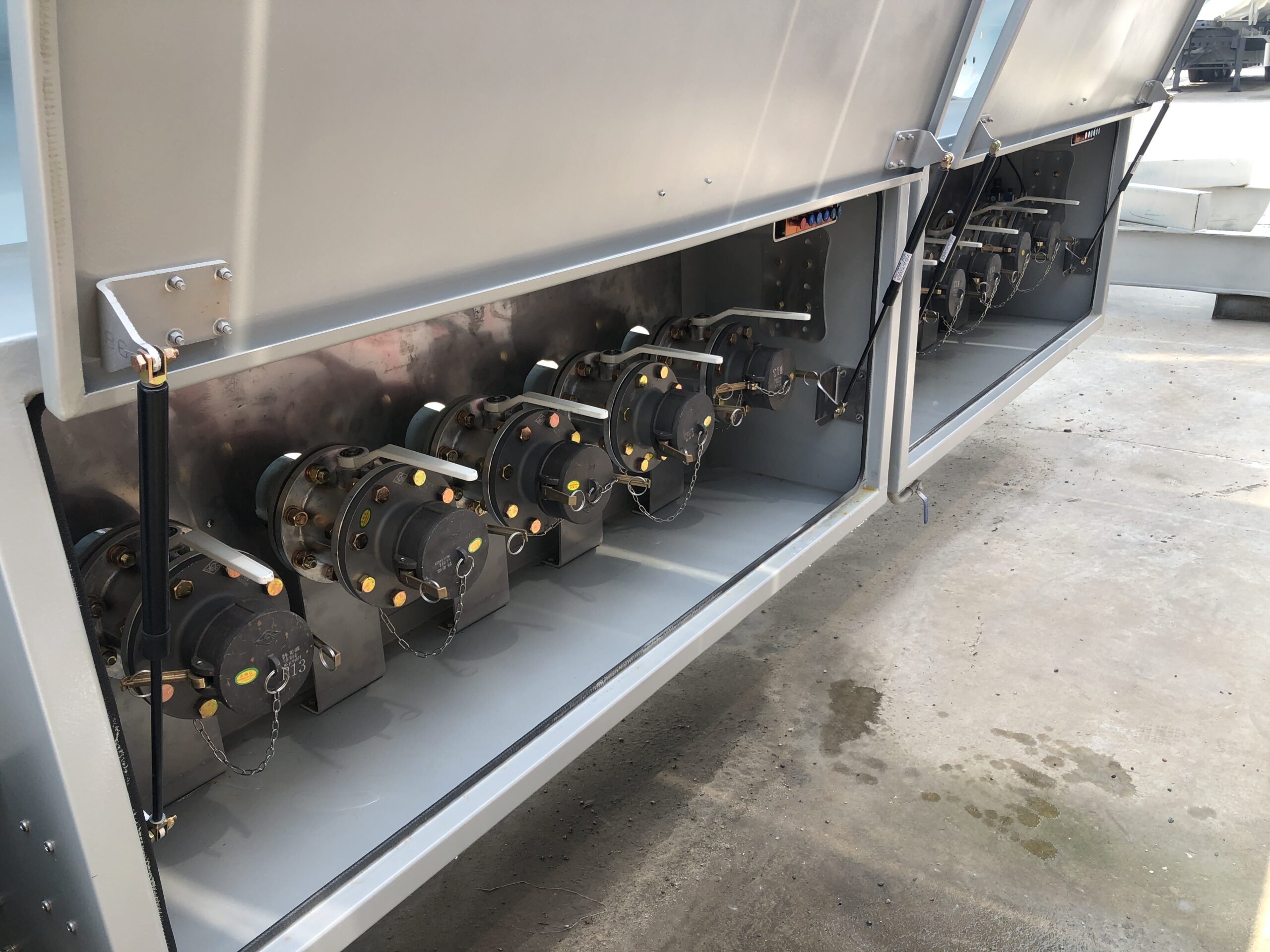

| Discharge Ball Valve | 4-inch aluminum alloy discharge ball valve | |
| Pneumatic Bottom Valve | 4-inch aluminum alloy pneumatic bottom valve | |
| Discharge Hoses | 2 pcs, 4-inch × 5 m | |
| Hose Couplings | 4-inch female couplings at both ends | |
| Bottom Loading System | Equipped | |
| Vapor Recovery System | Equipped | |
| Overfill Protection System | Not equipped | |
| Safety & Accessories | Top Handrail | Stainless steel pneumatic handrail |
| Mudguards | Plastic mudguards with brushes | |

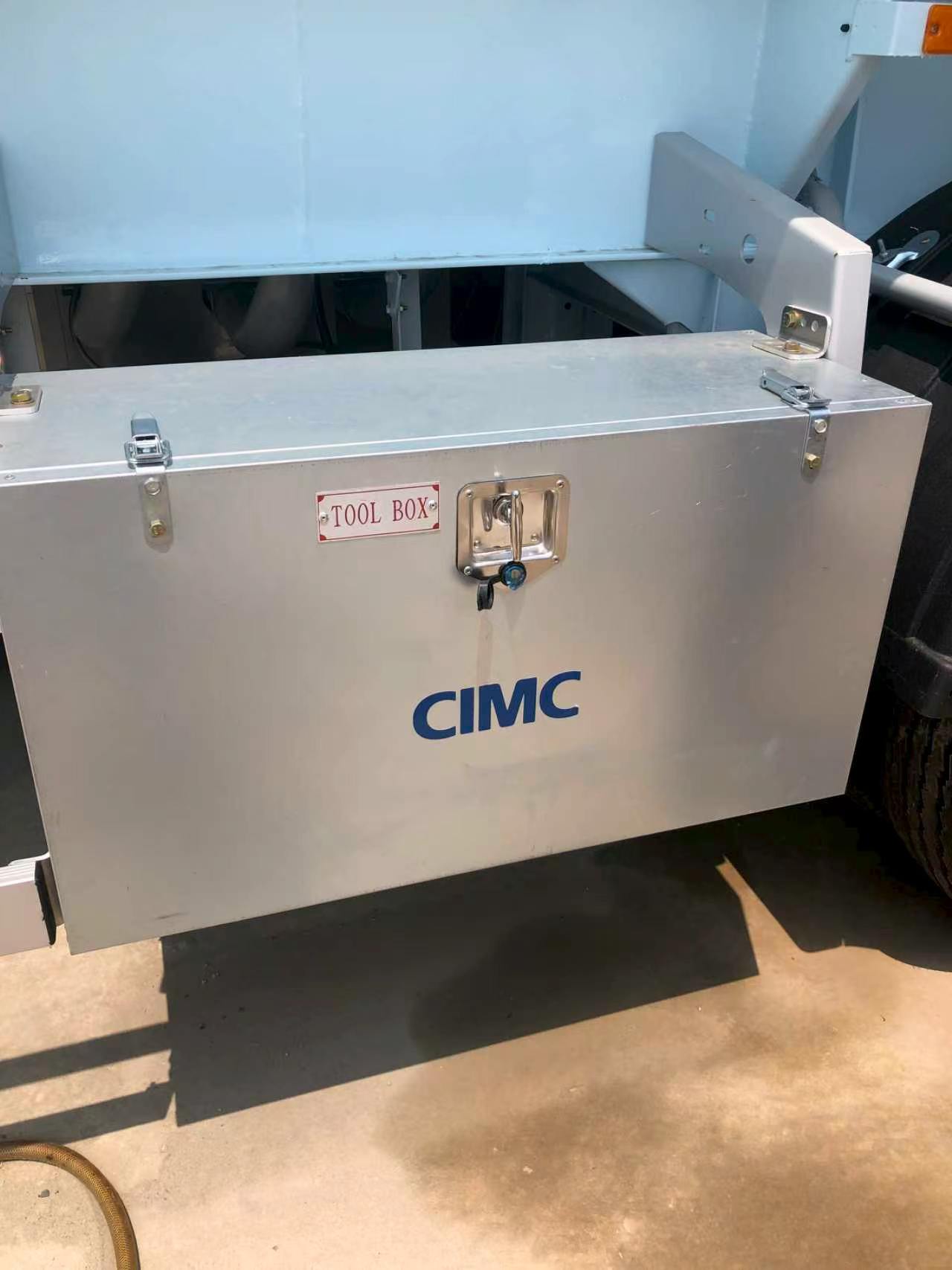

| Tool Box | Equipped | |
| Operation Box | Equipped | |
| Safety Hammers | 2 pcs | |
| Rear Drain Pipe | Steel drain pipe | |
| Branding & Color | CIMC Marking | CIMC logo displayed on toolbox, operation box and mudflaps |
| Vehicle Color | According to customer-specified color sample |

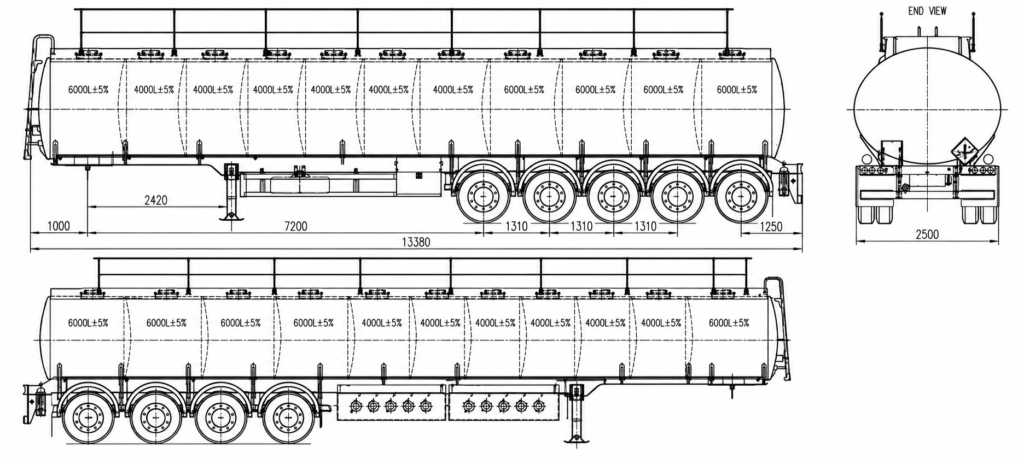

Technical Drawing
