Shacman 4×2 L3000 Sprinkler Truck 10cbm EURO 2
This reliable sprinkler truck is designed for efficient road cleaning, dust suppression, and irrigation tasks. With a 4×2 configuration and L3000 chassis, it offers excellent maneuverability and durability, making it ideal for urban and industrial environments.
Features
4×2 Configuration:
Large Water Tank Capacity:
Durable L3000 Chassis:
Versatile Spraying Functions:
Specifications
| Item | Specification |
|---|---|
| Product Name | 4×2 L3000 Sprinkler Truck |
| Chassis Model | SX11858J501 |
| Driving Type | 4×2 |
| Driver Position | Left Hand |
| Cab | With one sleeper, with air conditioner |
| Wheelbase | 5000mm |
| Max. Speed | 90km/h |
| Engine Brand | WEICHAI |
| Engine Model | WP6.210E32 |
| Emission Standard | Euro II |
| Rated Power | 210HP |
| Displacement | 7.14L |
| Gearbox | 8JS85TE-C-QD40J |
| Front Axle | 4.8T |
| Rear Axle | 10T MAN |
| ABS | With ABS, 2 Axle |
| Clutch | φ430 diaphragm clutch |
| Steering | ZF technology |
| Frame | 870×250(7+4) |
| Suspension | Front and rear multi-leaf spring |
| Tire | 10R22.5 |
| Fuel Tank | 300L aluminum alloy fuel tank |
| Brake System | Dual circuit compressed air brake |
| Parking Brake | Air discharging with spring control |
| Auxiliary Brake | Engine exhaust brake |
| Tank Capacity | 10,000L |
| Tank Body Thickness | 5mm |
| Head Plate Thickness | 6mm |
| Color | As client’s request |
| Upper Body | Sprinkler tank body, 10,000L |
Why Choose Our Shacman 4×2 L3000 Sprinkler Truck?
The Shacman 4×2 L3000 Sprinkler Truck 10cbm EURO 2 is a practical and reliable choice for road cleaning, dust control, landscaping irrigation, construction sites, and municipal water transport. Built on the chassis, this truck combines a strong L3000 platform with a 10,000L sprinkler tank, making it suitable for daily urban and project use.
It is powered by a WEICHAI WP6 engine with 210HP, matched with an gearbox. This powertrain provides stable performance for medium-duty working conditions while keeping operation simple and efficient. The 5000mm wheelbase gives the truck good driving stability, and the 4×2 driving type is suitable for city roads, industrial parks, construction areas, and general water spraying tasks.

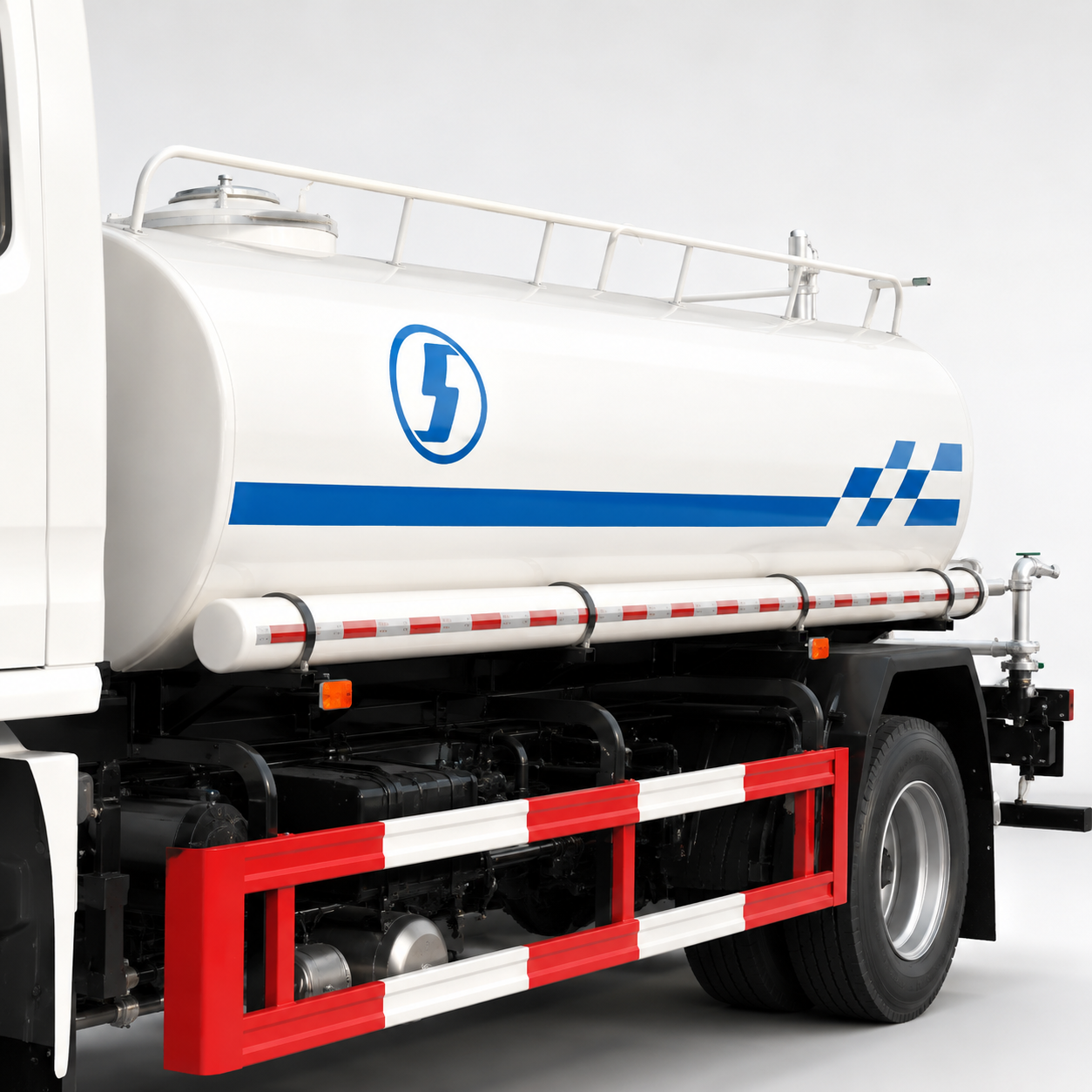

The tank is designed for practical use, with a 5mm tank body and 6mm head plate, offering solid strength for regular water transport and spraying work. The 10cbm capacity is ideal for customers who need a balance between loading capacity, flexibility, and operating cost.
For safety and comfort, the truck comes with ABS, dual circuit compressed air brake, engine exhaust brake, and front and rear multi-leaf spring suspension. The cab is equipped with one sleeper and air conditioner, improving driver comfort during long working hours. It also uses a 300L aluminum alloy fuel tank, 10R22.5 tires, ZF technology steering, and 4.8T front axle with 10T MAN rear axle.
Color can be customized according to customer requirements. Whether used for road washing, dust suppression, garden watering, or site water supply, this Shacman L3000 10cbm sprinkler truck offers a solid, cost-effective solution for daily operation.
FAQ – Shacman 4×2 L3000 Sprinkler Truck 10CBM EURO 2
1. What is the tank capacity of this sprinkler truck?
The truck is equipped with a 10,000L (10CBM) water tank, suitable for road washing, dust suppression, landscaping irrigation, and construction site water transport.
2. Which engine is used on this model?
This model uses the WEICHAI WP6.210E32 diesel engine offering reliable performance and easy maintenance.
3. Is this truck suitable for African and Middle East markets?
Yes. The EURO 2 emission standard, simple mechanical structure, and durable chassis make it suitable for countries with demanding road and working conditions.
4. What kind of roads can this truck work on?
The 4×2 configuration is suitable for city roads, highways, industrial parks, construction sites, and general municipal applications.
5. What spraying functions does the truck have?

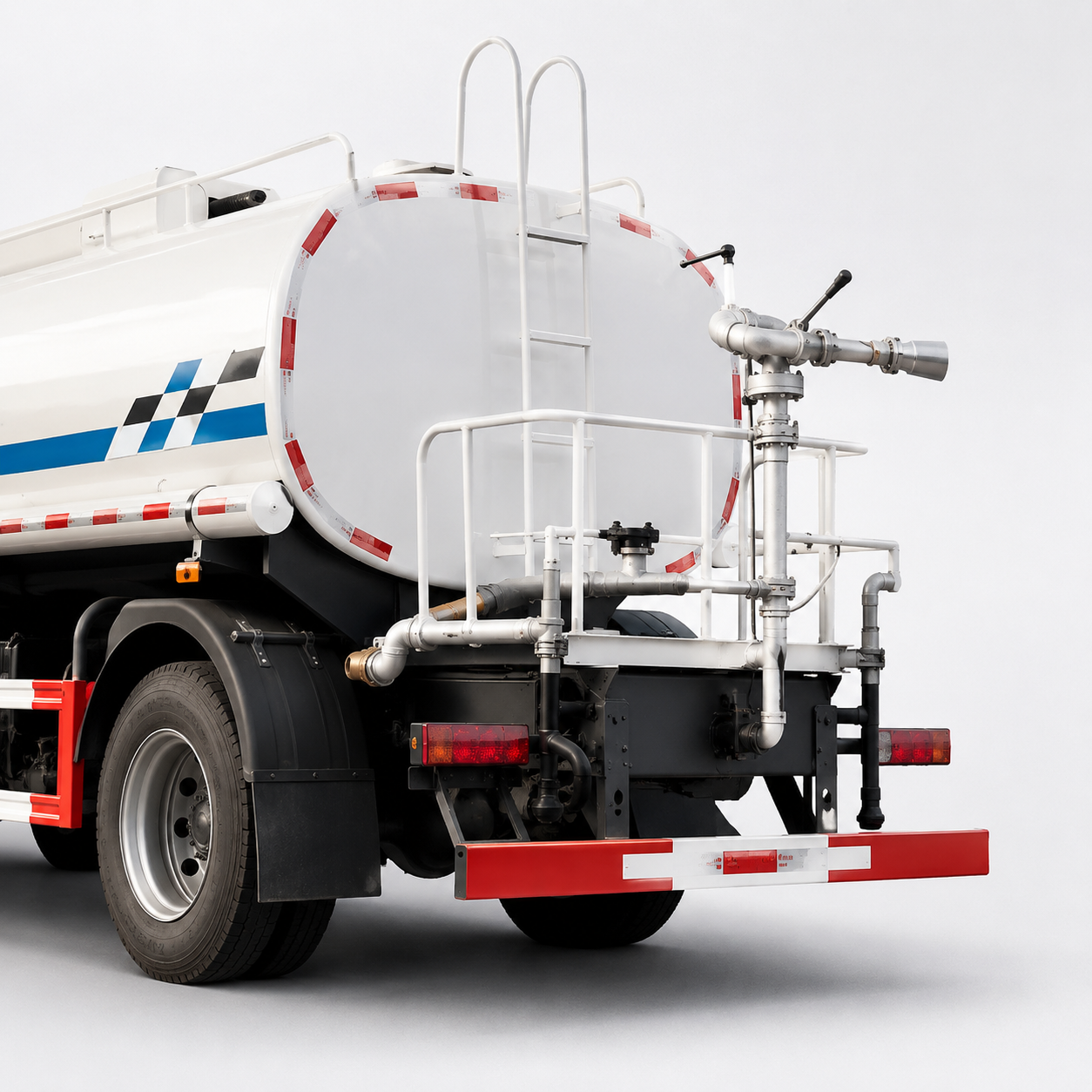

The truck can be equipped with front spray, rear spray, side spray, rear working platform, and high-pressure water cannon according to customer requirements.
6. Can the tank size be customized?
Yes. Tank capacity, tank thickness, spraying system, and color can all be customized based on customer needs.
7. What material is used for the fuel tank?
The truck uses a 300L aluminum alloy fuel tank, which is lighter and more corrosion-resistant.
8. Does the truck come with ABS?
Yes. This model is equipped with ABS and a dual circuit compressed air brake system for safer driving.
9. Is the cabin comfortable for long working hours?

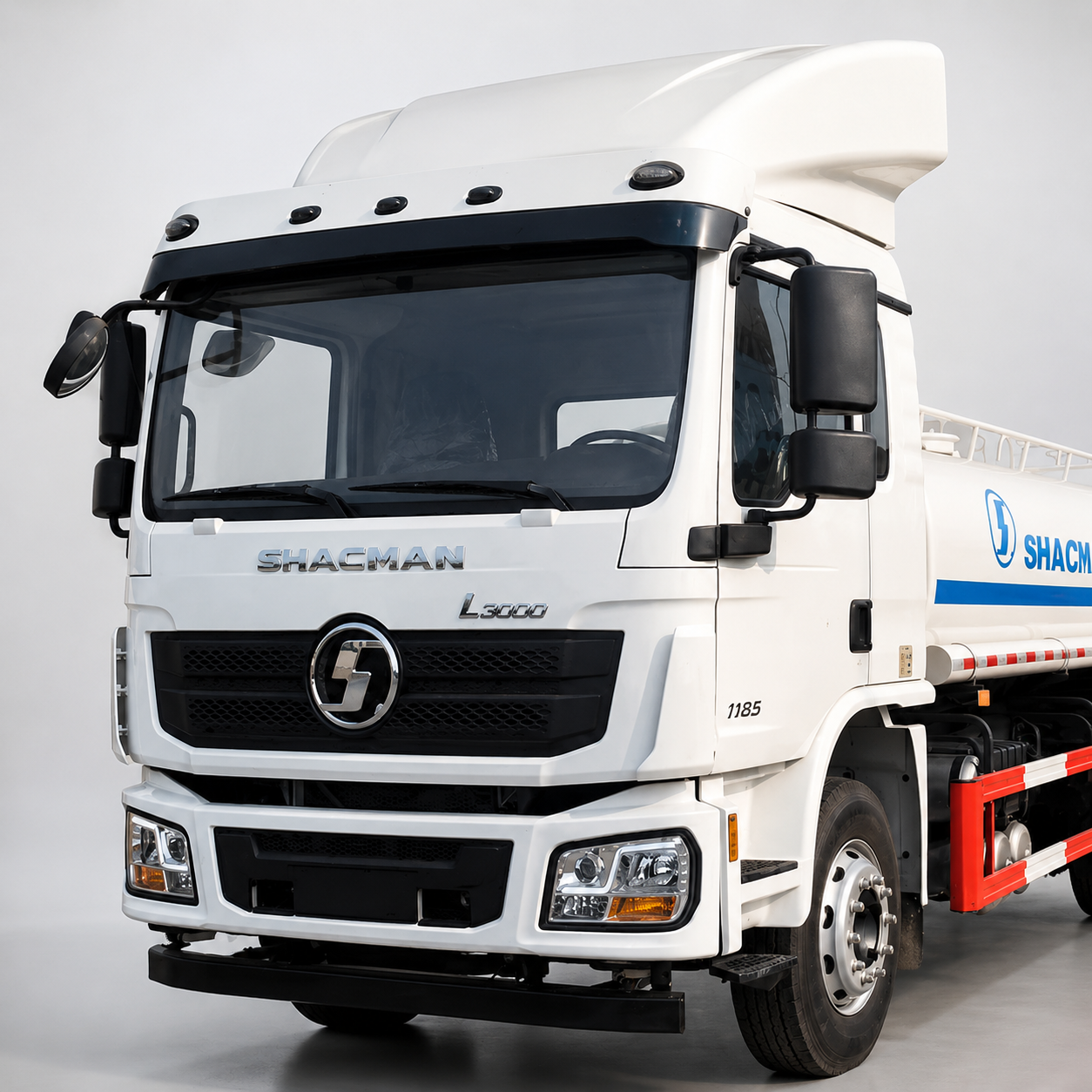

Yes. The L3000 cabin comes with one sleeper and air conditioner, providing better comfort for drivers during daily operation.
10. What tire size does this truck use?
The truck is equipped with 10R22.5 tires, commonly used for commercial transport and easy to source in many markets.
11. What is the thickness of the water tank?
The tank body thickness is 5mm, and the head plate thickness is 6mm, providing strong durability for long-term use.
12. What applications is this sprinkler truck suitable for?
It is widely used for:
- Road cleaning
- Dust control
- Landscaping irrigation
- Construction site water supply
- Mining area spraying
- Municipal sanitation work
13. Are spare parts easy to find?
Yes. WEICHAI engine parts and SHACMAN chassis parts are widely available in many overseas markets.
14. Can you provide left-hand drive models?
Yes. This model is left-hand drive and suitable for many export markets.
15. Can the truck color and logo be customized?
Yes. The truck color, tank logo, and company markings can be customized according to customer requests.
