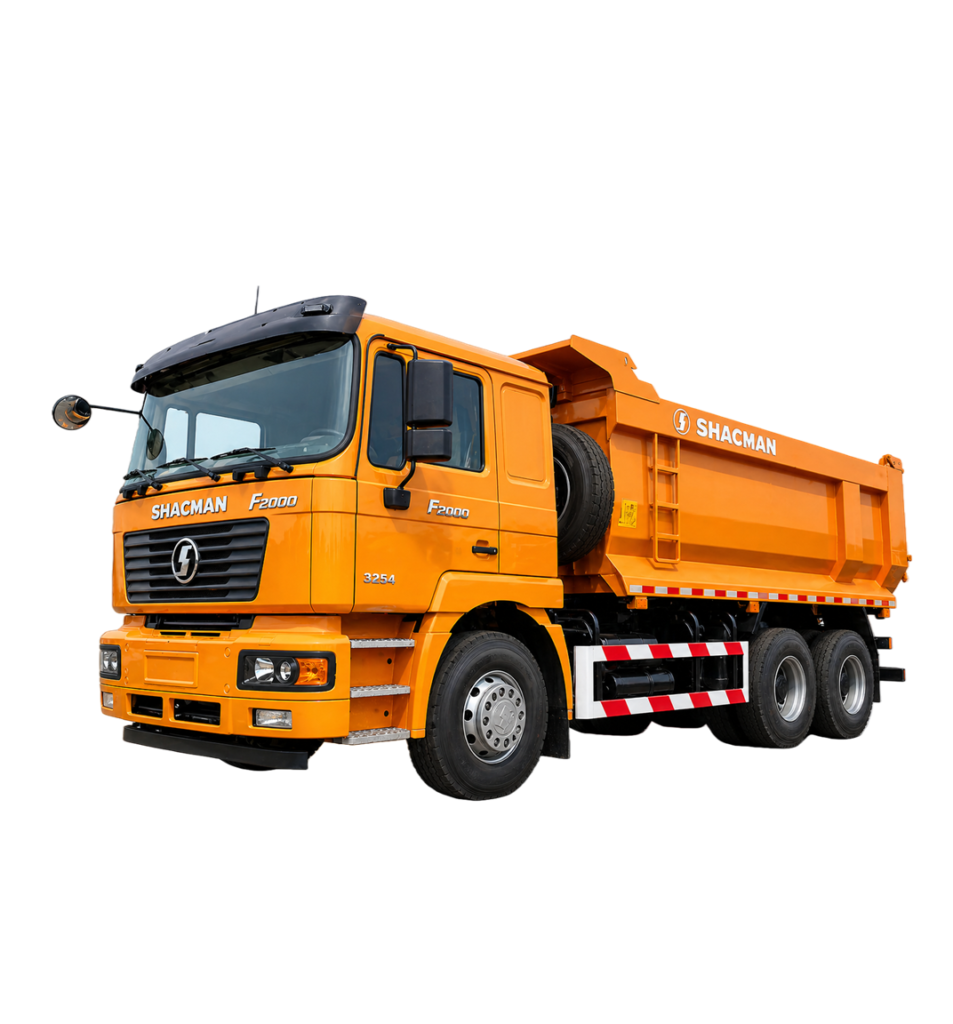

Shacman F2000 6×4 Dump Truck 16cbm
Built to meet even the toughest demands and set the bar for safety and efficiency. This series of vehicles utilize Weichai engines, a few leaf springs, a lightweight high-strength frame, rubber suspension, and other advanced technologies. Utilizes WEVB engine exhaust-breaking patented technology which increases braking efficiency by more than 55%.
Features
16CBM Large Capacity:
Provides ample space for transporting large volumes of materials, improving efficiency in construction and mining tasks.
6×4 Configuration:
Ensures superior power distribution and traction, offering stability and control on uneven or challenging terrains.
Durable F2000 Chassis:
Built to withstand tough conditions, ensuring long-lasting performance and low maintenance costs.
Efficient Tipping Mechanism:
Features a reliable hydraulic tipping system for quick and easy unloading, reducing downtime during operations.
Specifications
| Model | SX3255DR384 | |
| Driving Type | 6×4 | |
| Wheelbase (mm) | 3775+1400 | |
| Curb weight (kg) | 12370 | |
| Gross weight (kg) | 25000 | |
| Overall Dimension (mm) | L | 8495 |
| W | 2500 | |
| H | 3450 | |
| Max. Speed (km/h) | 78 | |
| Engine model | WEICHAI WP10.340E32 | |
| Rate power | 340HP | |
| Emission Standard | EURO II | |
| Engine displacement(L) | 9.726 | |
| Quantity of axle | 3 | |
| Gearbox | US Eaton Fuller technology, FAST,9JS135T-B, 9 forward gears, 1 reverse gear, with synchronizer | |
| Tire | 12.00R20 | |
| Fuel tank capacity(L) | 400L, Aluminum | |
| Cab | German MAN technology, F2000 D Cabin, one sleeper,hydraulic seat for driver, electric window glass lifter, with A/C, hydraulic cabin suspension | |
| Front axle | German MAN technology, HANDE, MAN 7.5T front axle | |
| Rear axle | German MAN technology, HANDE, STR 16T rear axle, Hub Reduction, ratio 5.73 | |
| Fuel kind | DIESEL | |
| Other Equipments | Manual cab tilting, Aluminum reservoir, 165Ah free-maintenance battery, desert air filter | |
| Body | Dump box,5600x2300x1500 mm, bottom 10mm side 8mm, HYVA 137 front lifting hydraulic cylinder | |
| QUALITY | 100PCT BRAND NEW. PRODUCED IN 2018 | |
| CIF,SHV port price（USD） | 26,000-30,000 | |
