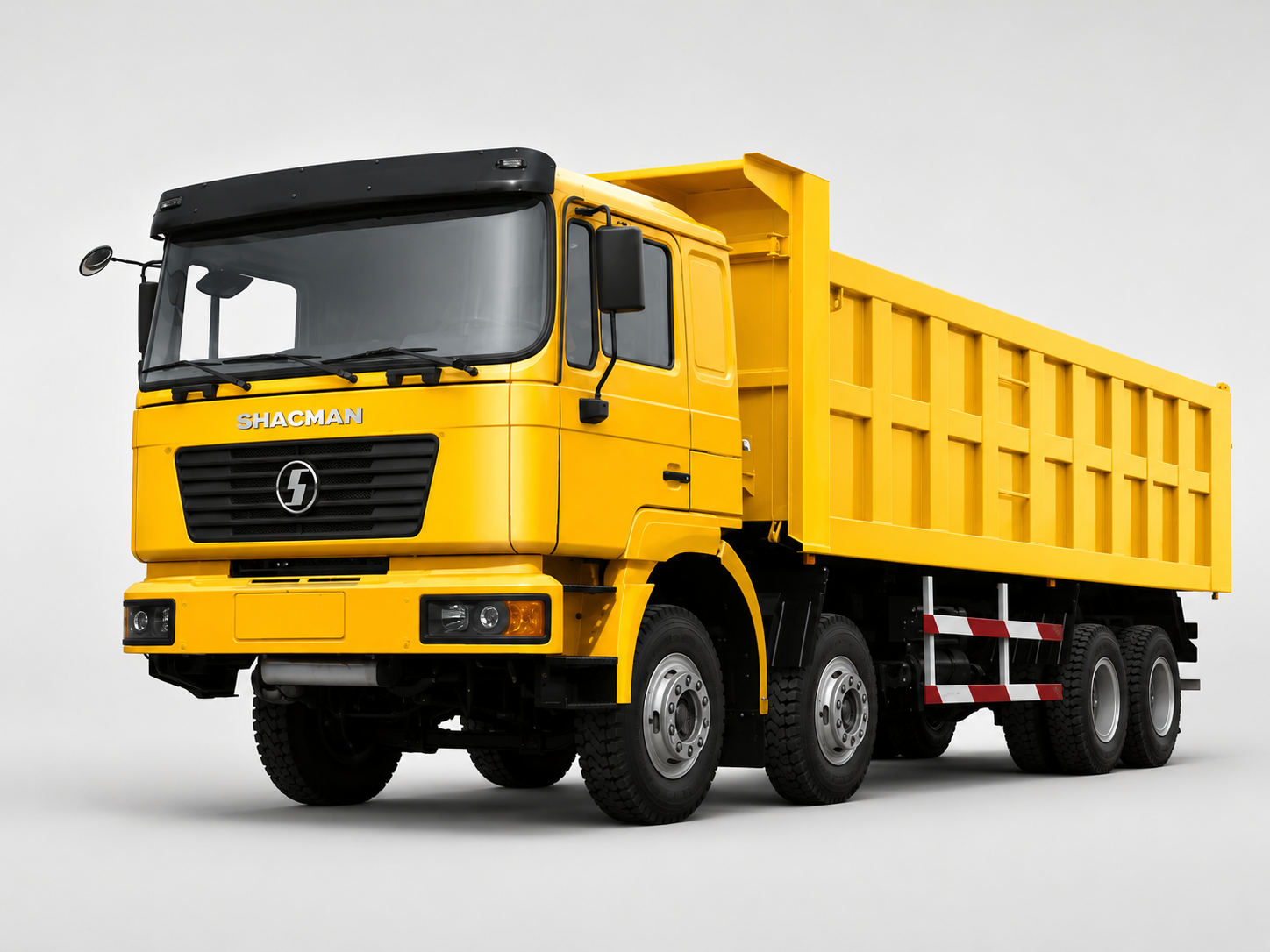

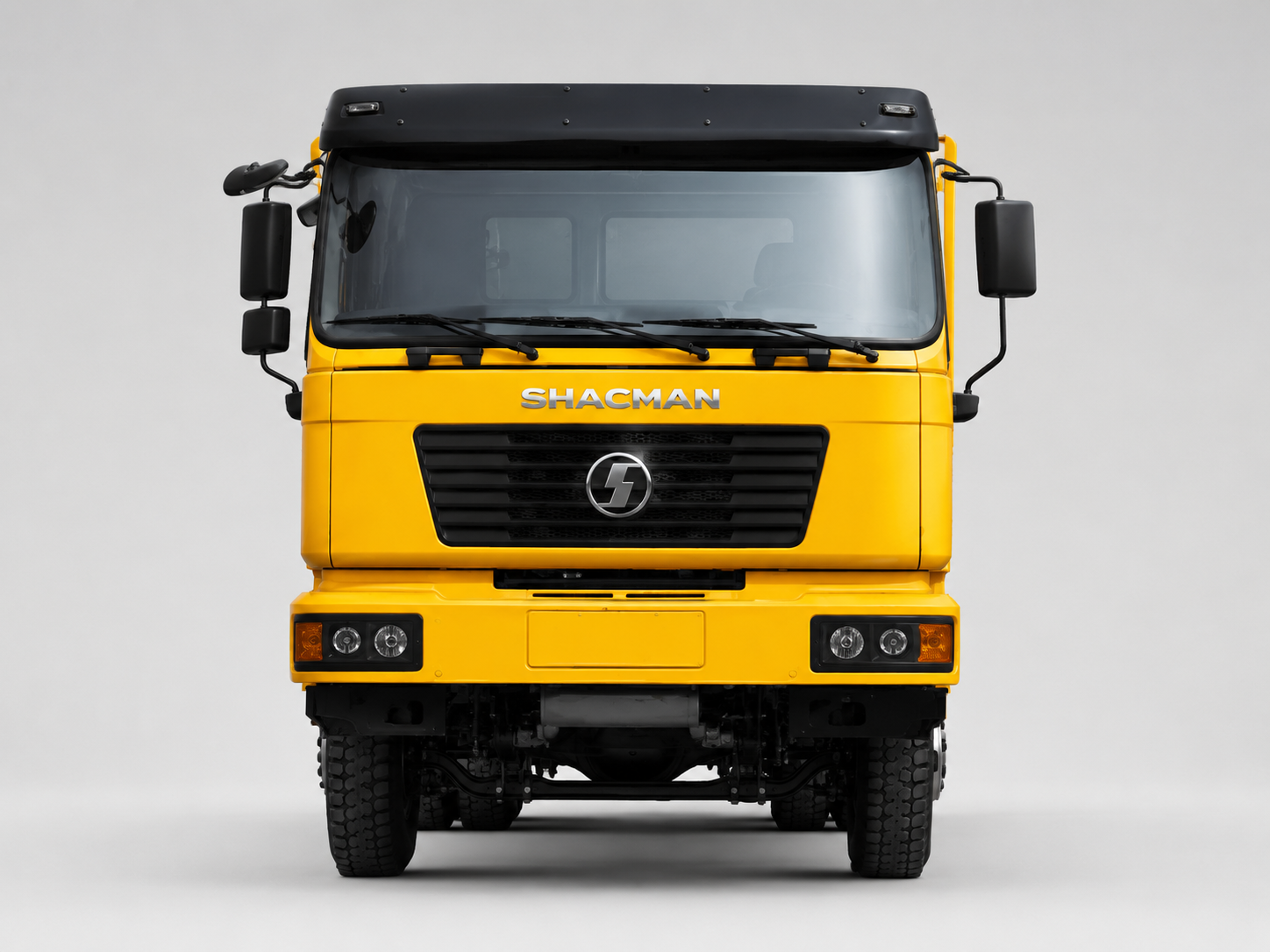

Shacman F2000 Dump Truck 8X4
The SHACMAN F2000 series heavy-duty trucks, with over 30 years of reputation, perfect for even the most difficult tasks, bring unprecedented value to its users.
Features
8×4 Configuration:
Expansive Cargo Area:
Powerful Engine:
Durable Build:
Specifications
Experienced Engineering
Lightweight world advanced design concept, inheriting the company’s military qualities and over 52 years of manufacturing experience. Built to meet even the toughest demands and set the bar for safety and efficiency. This series of vehicles utilize Weichai engines, a few leaf springs, lightweight high-strength frames, rubber suspension, and other advanced technologies. Utilizes WEVB engine exhaust-breaking patented technology which increases braking efficiency by more than 55%.
Superior Quality
The cabin utilizes high-strength materials, left and right side doors are equipped with high-strength anti-collision beams, passed ECE-R29 crash test certification, lower floor to ensure the most driving room. Innovative use of lightweight strength frame. Utilizes advanced Austria CRUISE software.
| Drive Type | 8×4 |
| Cabin | Lengthened high roof (N)Lengthened flat roof (J) Mid-length flat roof (D) |
| Engine | Weichai power WP10, WP12 |
| Emission Level | Euro II, III, IV, V |
| Transmission | Manual transmission 8F, 9F, 10FAutomatic transmission |
| Clutch | ETONФ430 diaphragm imported or Chinese-manufactured |
| Front Axle | 7.5 ton MAN drum type6.5 ton STR double front axle8 ton STR double front axle6.5 ton STR |
| Rear Axle | 16-ton STR double stage casting (drum) 16-ton MAN double stage casting (drum) |
| Suspension | Multi-leaf spring configuration, 4 main pieces + 2 U-bolts or 4 U-bolts |
| Frame（in mm） | 850*300（8+7） |
| Fuel Tank | 200 / 300 liter steel300 / 400 liter aluminum400 liter flat aluminum |
| Tires | 11.00R20、12.00R20 |
