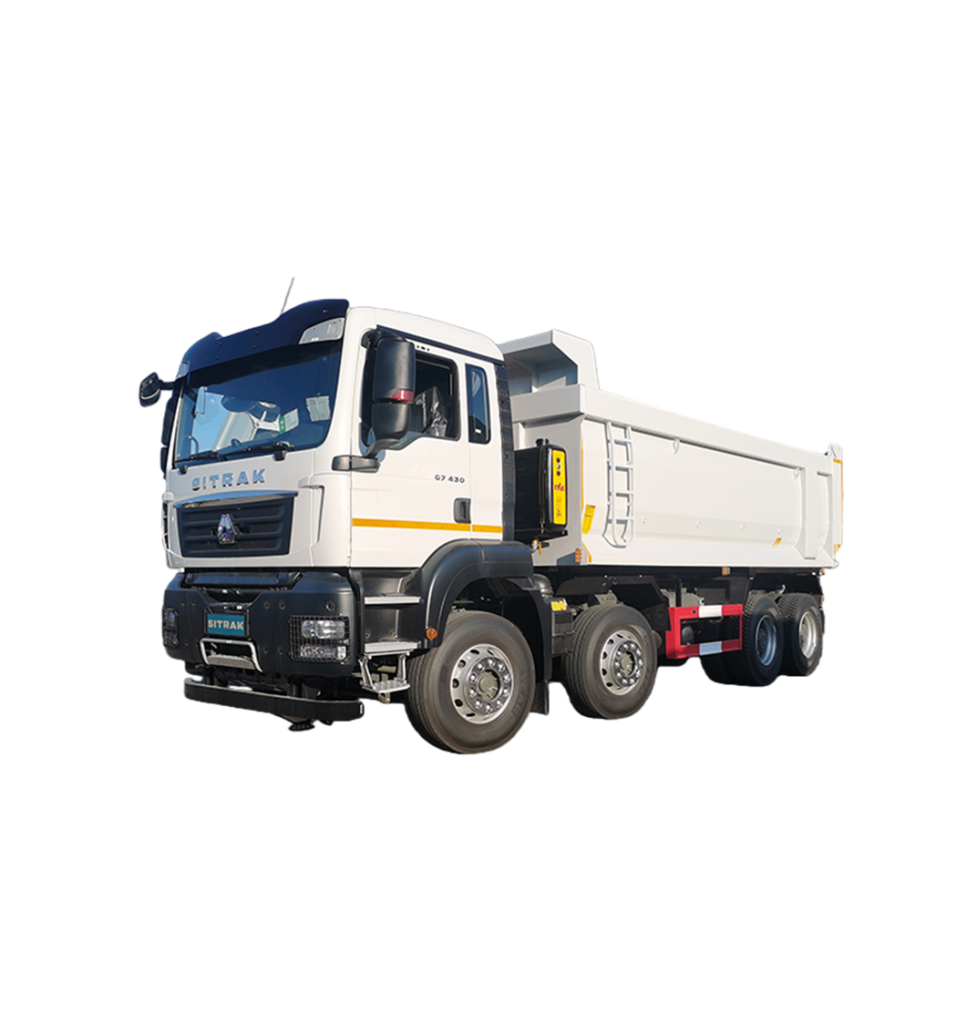

SINOTRUK SITRAK G7 8×4 Dump Truck
The SINOTRUK SITRAK G7 8×4 Dump Truck is a high-performance heavy-duty tipping truck developed with MAN technology, designed for large-scale construction, mining, and infrastructure projects. Equipped with a 430PS engine, ZF driveline, and a reinforced high-capacity dump body, it delivers outstanding power, stability, and durability under extreme working conditions.
Features
MAN Technology Powertrain – 430PS Output
Heavy-Duty 8×4 Drivetrain Configuration
High-Capacity Reinforced Dump Body
Advanced Safety & Driver Comfort Systems
Specifications
| Item | Description |
|---|---|
| Vehicle Type | Heavy Duty Dump Truck |
| Drive Type | 8×4 |
| Cab | G7–M cabin, one small sleeper |
| Wheelbase | 3000 mm |
| Engine | MC11.43-30 (MAN technology) |
| Engine Power | 430 PS |
| Emission Standard | Euro III |
| Gearbox | ZF 16S2230TO, 16F & 2R manual |
| Synchronizer | Equipped |
| PTO | ZF PTO equipped |
| Steering System | BOSCH brand |
| Front Axle | 9,500 kg × 2, drum brake (MAN technology) |
| Rear Axle | 16,000 kg × 2, drum brake, double reduction (MAN technology) |

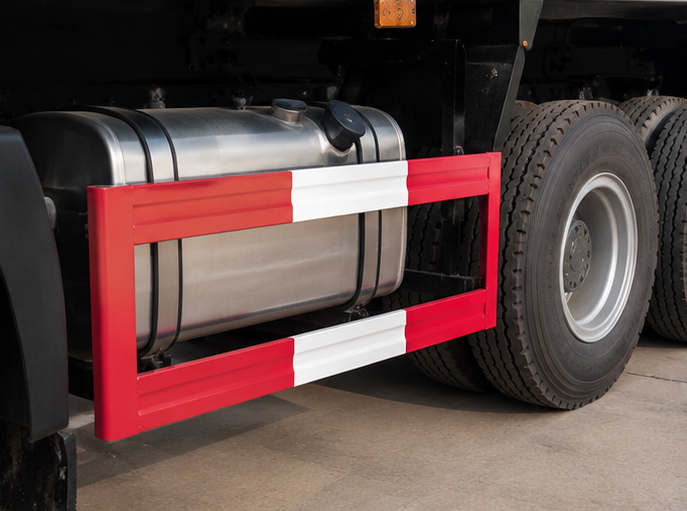

| Fuel Tank | 400 L |

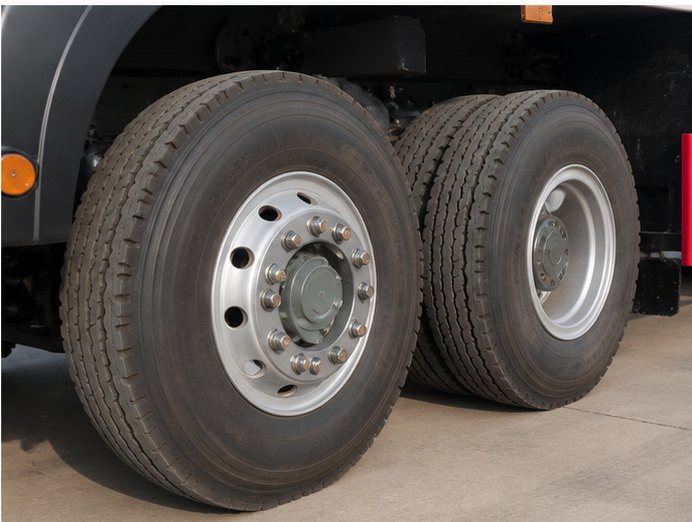

| Tires | 315/80R22.5 tubeless |
| Tire Brand | GOODYEAR |
| Spare Tire | 1 unit |

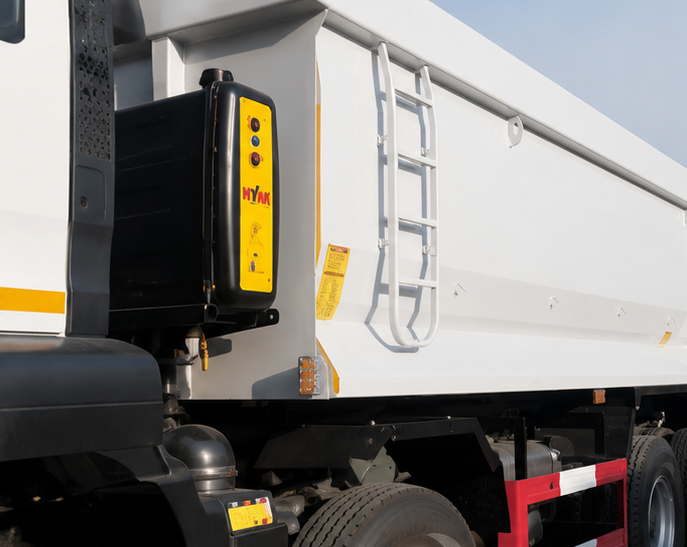

| Lifting System | HYVA front lifting hydraulic cylinder |
| Body Material | High-strength plate steel |
| Auxiliary Brake | Engine exhaust valve brake |
| Safety Systems | ABS + ASR + EBL |
| Cab System | Electronic cab-flip system |
| Comfort & Equipment | A/C, driver air suspension seat |
| Protection | Intercooler protection |
| Alarm System | Reverse alarm |
| Monitoring | Tachograph |
| Customization | Color optional |
FAQ – SINOTRUK SITRAK G7 8×4 Dump Truck
1. What is the main application of the SITRAK G7 8×4 Dump Truck?
The SITRAK G7 8×4 is designed for heavy-duty transport work such as mining, quarry operations, construction projects, earthmoving, and large-scale material hauling.
2. What engine does this model use?
This truck is equipped with the MC11.43-30 engine based on MAN technology, delivering 430PS strong output for heavy-load operation.
3. Why choose the 8×4 configuration?
The 8×4 drive system provides higher payload capacity and better stability when transporting sand, rocks, ore, gravel, and construction materials.
4. Is the SITRAK G7 suitable for mining and rough road conditions?
Yes. The reinforced chassis, heavy-duty suspension, and MAN technology axles make it suitable for demanding working environments.
5. What gearbox is installed on this truck?
The truck uses a ZF 16-speed manual gearbox with synchronizer, designed for smooth shifting and reliable power transmission.
6. What type of hydraulic lifting system is used?
This model is equipped with a HYVA front lifting hydraulic cylinder, widely known for stable lifting performance and durability.
7. What safety systems are included?
The truck comes with ABS, ASR, and EBL safety systems to improve braking stability and driving safety under heavy loads.
8. What tire specification does the truck use?
The truck uses 315/80R22.5 tubeless tires with GOODYEAR brand tires for better durability and road performance.
9. Is the cabin comfortable for long working hours?
Yes. The G7-M cabin includes air conditioning, an air suspension driver seat, and one small sleeper for improved driver comfort.
10. Does the truck support long-distance transport?
Yes. The 400L fuel tank and comfortable cabin setup make it suitable for both local construction work and long-distance hauling.
11. Is the dump body made for heavy materials?
Yes. The cargo body is built with high-strength plate steel, designed to handle heavy loads and tough working conditions.
12. What type of braking system does the truck use?
The truck uses drum brake axles with engine exhaust valve brake assistance for stronger braking performance.
13. Can the dump body size be customized?
Yes. Cargo box dimensions, steel thickness, and lifting configurations can be customized according to customer requirements.
14. Is this truck easy to maintain?
Yes. The electronic cab-flip system makes daily inspection and maintenance easier for operators and service teams.
15. What materials can this dump truck transport?
It is commonly used for:
- Sand
- Gravel
- Soil
- Coal
- Ore
- Construction waste
- Stone and aggregate materials
16. Is reverse alarm included?
Yes. The truck is equipped with a reverse alarm system to improve job site safety.
17. Can the truck color be customized?
Yes. The truck color can be customized based on customer branding or project requirements.
18. Why do many customers choose SITRAK G7?
Customers choose the SITRAK G7 because it combines MAN technology, strong load capacity, driver comfort, fuel efficiency, and reliable performance for heavy-duty operations.
