CIMC 3 Axle 45 ft Gooseneck Low Bed Semi Trailer 60 Ton
Built to handle up to 60 tons, this CIMC low-bed trailer features three axles for optimal weight distribution and enhanced performance on various terrains.
Features
60-Ton Load Capacity:
Three Axle Stability:
Heavy-Duty Suspension:
Optimized Safety Features:
Specifications
| PARAMETER | Overall dimension | L*W*H: 13780X3000X3220 mm |
| Load Platform Size | Concave type L*W: 4950 x3000mm | |
| Axle space | 9335+1310+1310 mm | |
| Curb weight | 11,000kg | |
| Payload | 60,000kg | |
| OEM | Landing gear | JOST A400 |
| Kingpin | JOST,2″bolted type | |
| Brake system | Dual line pneumatic brake system. WABCO Valve | |
| ABS | No | |
| Brake chamber | Type 30/30 spring brake chamber on three axles | |
| Suspension | Spring suspension | |
| Axle | FUWA square axle, 16-ton capacity/set,3pcs | |
| Tire | 12.00R20-18PR,13pcs, Brand ling long | |
| Rim | 9.0-20, 10 Holes IsO, 13pcs, made in china | |
| Toolbox | 1 pcs | |
| Spare tire carrier | 1 pcs | |
| Ramp | Spring loaded Size: 2.5×0.8 meter | |
| Painting | As customer request |
CIMC 3 Axle 45 ft Gooseneck Low Bed Semi Trailer- FAQ
1. What is the weight capacity of this trailer?
The trailer is designed to carry a payload of 60,000 kg (60 tons), suitable for heavy-duty transport requirements.
2. What is the curb weight of the trailer?
The curb weight of the trailer is 11,000 kg, which ensures it can bear large and heavy loads efficiently.
3. What are the overall dimensions of the trailer?
The trailer measures:
- Length: 13,780 mm
- Width: 3,000 mm
- Height: 3,220 mm
The load platform size is 4,950 x 3,000 mm (concave type), providing ample space for various types of cargo.
4. What is the axle configuration of this trailer?
The trailer uses a three-axle configuration with an axle space distribution of 9335 + 1310 + 1310 mm. This setup enhances weight distribution and stability.
5. What type of suspension system does the trailer use?
The trailer features spring suspension, which ensures a stable and smooth transport experience, especially for heavy loads.
6. What kind of landing gear is installed on this trailer?
The trailer is equipped with JOST A400 landing gear, which is known for its reliability and ease of operation in demanding environments.
7. Is the trailer equipped with an ABS system?
No, this model does not come with an ABS system.
8. What type of brake system does the trailer have?
The trailer features a dual-line pneumatic brake system with a WABCO valve, ensuring reliable and efficient braking.
9. What kind of tires are used on this trailer?
The trailer uses 12.00R20-18PR tires (13 tires in total), ensuring durability and reliability during heavy-duty use.
10. What is the ramp mechanism?
The trailer is equipped with spring-loaded ramps, which can be easily adjusted for loading and unloading heavy equipment.
11. What is the size of the ramp?
The spring-loaded ramp measures 2.5 x 0.8 meters (Length x Width), providing ample space for easy loading of large items.
12. What axles are used in this trailer?
The trailer uses FUWA square axles, each with a 16-ton capacity, which helps ensure stable load distribution and enhances performance on various terrains.
13. Can the painting on the trailer be customized?
Yes, the painting can be customized according to your requirements.
14. How many spare tire carriers are included?
The trailer includes one spare tire carrier, allowing for additional tire storage in case of emergencies.

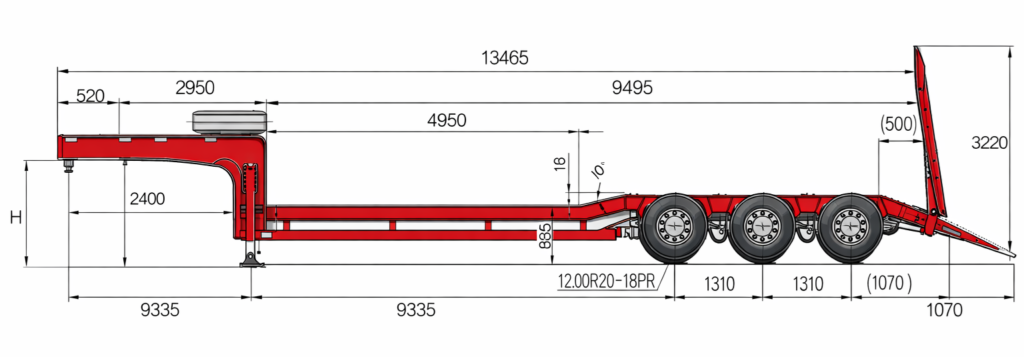

Technical Drawing
