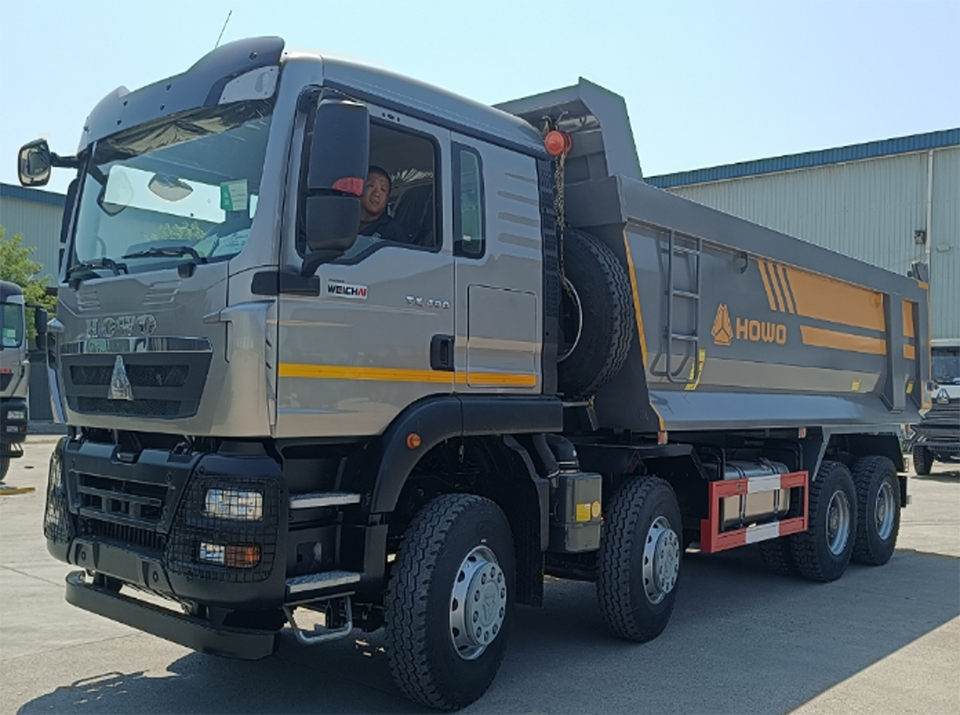

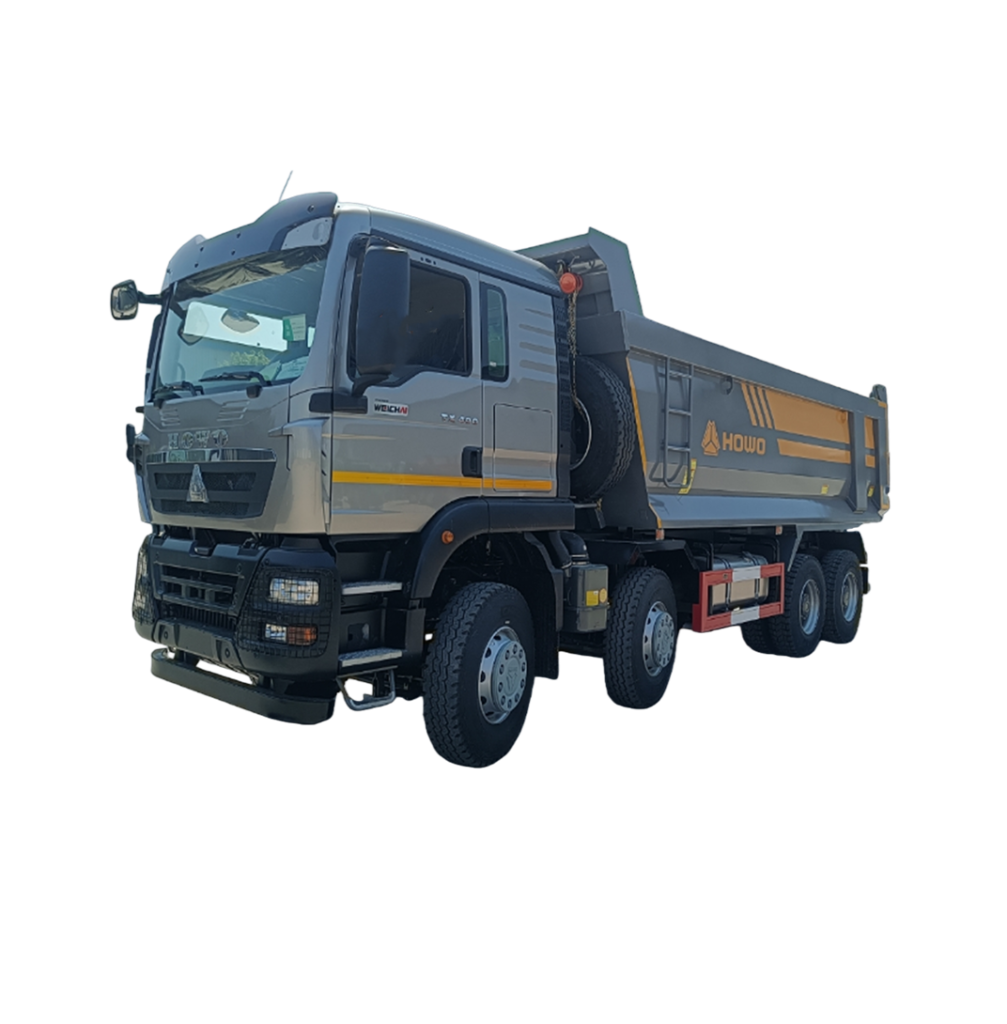

SINOTRUK HOWO TX 8×4 Dump Truck
The SINOTRUK HOWO TX 8×4 Dump Truck is a heavy-duty tipping truck designed for construction, mining, and infrastructure projects. Equipped with a powerful WEICHAI 400PS engine and reinforced tipper body, it delivers reliable performance, high payload capacity, and compliance with Algeria regulatory requirements.
Features
Powerful 400PS WEICHAI Engine
Heavy-Duty 8×4 Drivetrain
Reinforced High-Capacity Tipper Body
Enhanced Safety & Driver Comfort
Specifications
| Item | Description |
|---|---|
| Vehicle Type | Heavy Duty Dump Truck |
| Drive Type | 8×4 |
| Cab | TX-F cabin, single sleeper |
| Wheelbase | 3200 mm |
| Engine | WEICHAI WP12S400E201 |
| Engine Power | 400 PS |
| Emission Standard | Euro II |
| Gearbox | HW19709XST, 9 Forward & 1 Reverse |
| PTO | Equipped |
| Steering System | BOSCH brand |
| Front Axle | 9,500 kg × 2 steering axles, drum brake |
| Rear Axle | 16,000 kg × 2 axles, drum brake |
| Suspension | Reinforced parabolic multi-leaf springs |
| Tires | 315/80R22.5 tubeless |
| Spare Tire | 1 unit |
| Fuel Tank | 400 L |
| ABS | Equipped (4S/4M) |
| Auxiliary Brake | EVB |
| Compliance | Algeria regulatory requirements |
| Body Type | Front lifting dump body |
| Body Material | High-strength steel |
| Customization | Color optional |
SINOTRUK HOWO TX 8×4 Dump Truck FAQ
1. What is the best heavy-duty dump truck for construction and mining projects?
The SINOTRUK HOWO TX 8×4 is ideal for construction sites, mining operations, and earthmoving, offering strong load capacity, durability, and reliable performance in extreme conditions.
2. What drive type and axle configuration does the HOWO TX 8×4 have?
This truck features an 8×4 drive system, with the front two axles for steering and the rear two axles as drive axles, ensuring superior traction and stability for heavy load transportation.
3. Which engine is installed in the SINOTRUK HOWO TX 8×4 dump truck?
It comes with a WEICHAI WP12S400E201 engine, delivering 400 PS and meeting Euro II emission standards, making it efficient and environmentally compliant for global operations.
4. What is the gearbox type of the HOWO TX 8×4 dump truck?
Equipped with the HW19709XST manual gearbox, offering 9 forward gears and 1 reverse gear, ensuring smooth and reliable power delivery even under heavy loads.

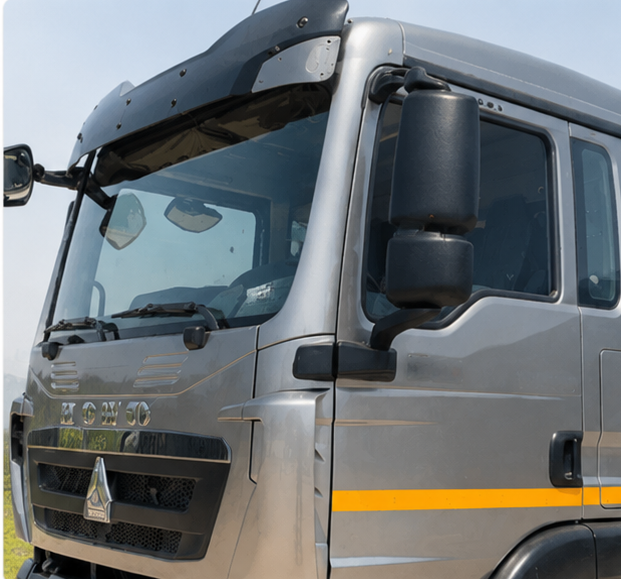

5. What type of cabin does the HOWO TX 8×4 have?
It features a TX-F single sleeper cabin, providing comfortable seating, ample space, and excellent visibility for long-distance or full-day construction work.

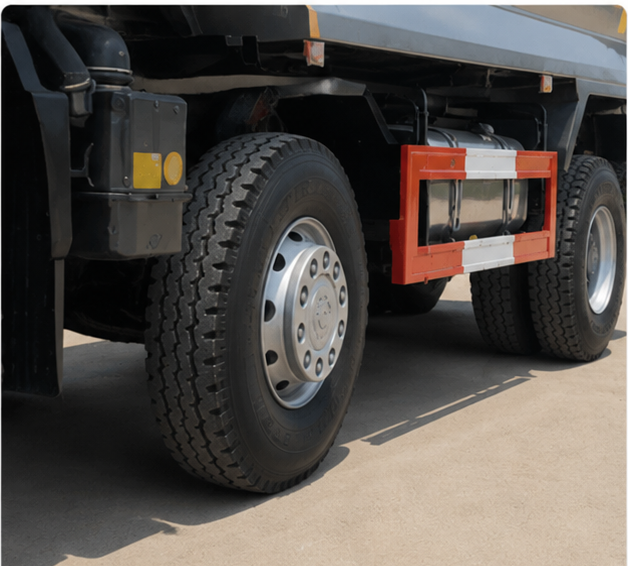

6. What are the tires and suspension specifications for the HOWO TX 8×4?
Tires: 315/80R22.5 tubeless
Suspension: Reinforced parabolic multi-leaf springs, designed for heavy-duty load stability on rough terrain.

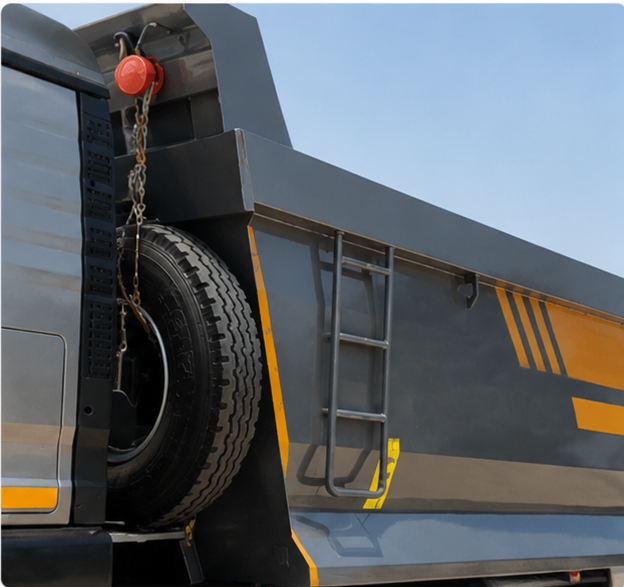

7. What is the cargo bed type and material of the HOWO TX 8×4?
The truck has a front-lifting dump body made from high-strength steel, which is wear-resistant, durable, and can be customized in color to suit your project needs.
8. How is the braking system of the HOWO TX 8×4 dump truck configured?
Brakes: Drum brakes on all axles
ABS: 4S/4M system
Auxiliary brake: EVB for added safety and braking efficiency
9. What is the spare tire and fuel tank capacity?
Spare tire: 1 unit included
Fuel tank: 400 L, sufficient for extended operation without frequent refueling
10. Does the HOWO TX 8×4 support PTO (Power Take-Off) equipment?
Yes, the truck comes equipped with a PTO shaft, capable of powering hydraulic equipment or other auxiliary machinery on-site.
11. Can the SINOTRUK HOWO TX 8×4 be customized?
Yes, clients can choose custom body colors and optional configurations depending on specific project requirements.
12. Is the HOWO TX 8×4 compliant with international standards?
Yes, it is designed to meet global export and regulatory requirements, making it suitable for use in multiple countries worldwide.
