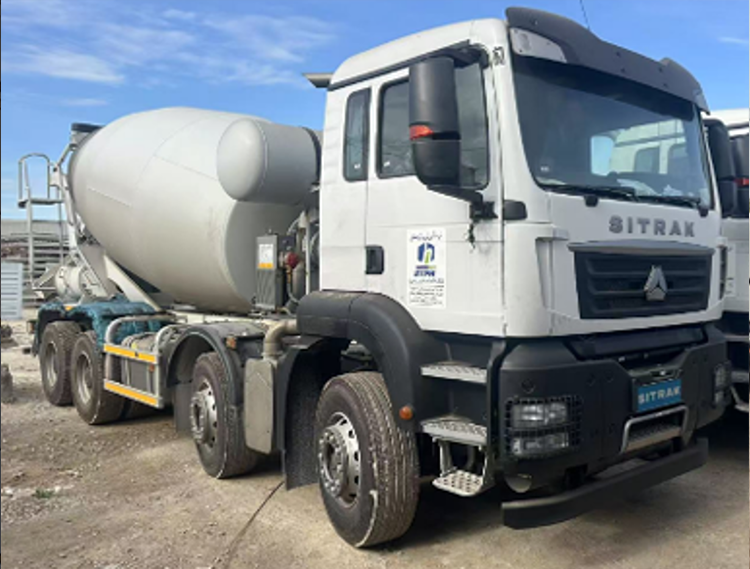

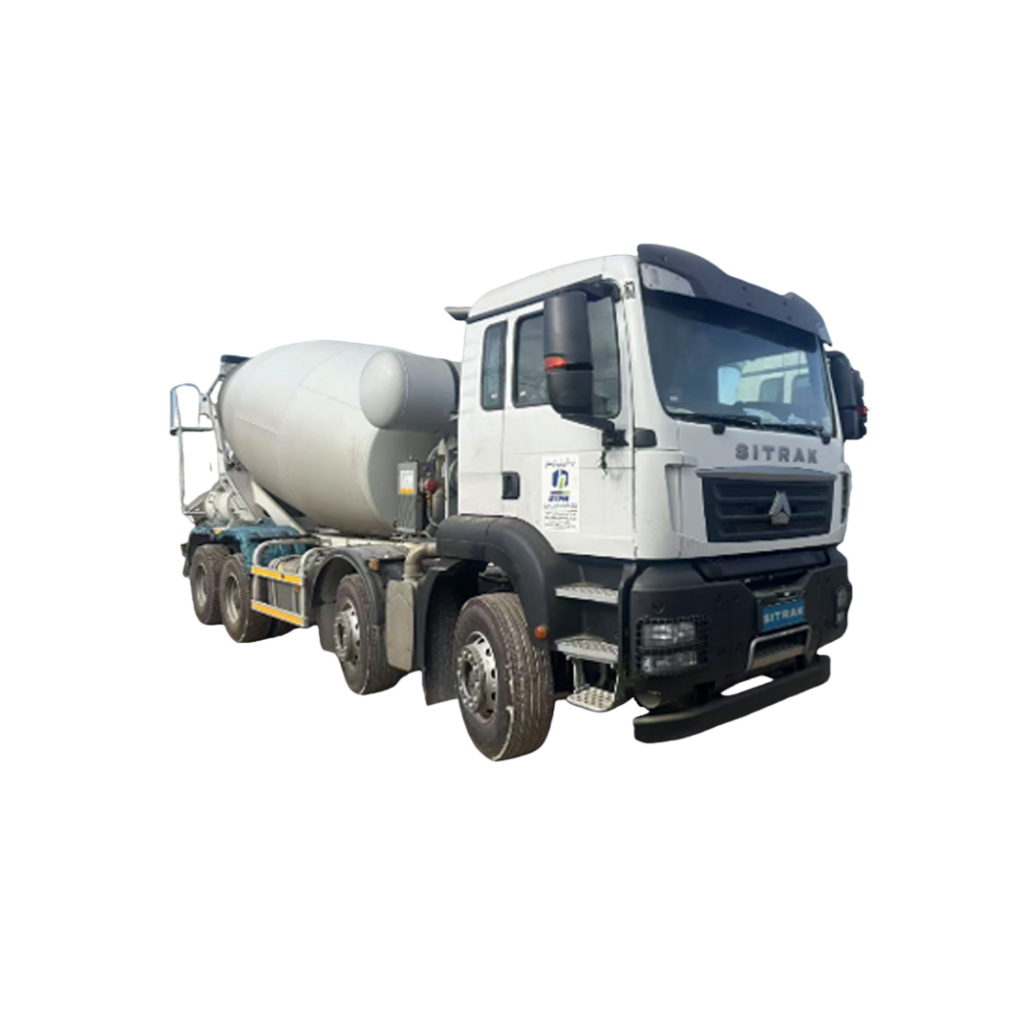

SINOTRUK SITRAK 8×4 Mixer Truck
The SINOTRUK SITRAK 8×4 Mixer Truck (LHD) is a high-capacity concrete mixer truck developed with German MAN technology, designed for large-scale construction and infrastructure projects. Equipped with a 430PS engine, ZF 16-speed manual gearbox, and a 12m³ mixer tank, it delivers outstanding power, stability, and efficiency for continuous heavy-duty concrete transportation.
Features
German MAN Technology Powertrain – 430PS
Heavy-Duty 8×4 Drivetrain for Large Volume Mixing
High-Capacity 12m³ Mixer Tank
Advanced Safety & Driver Comfort Systems
Specifications
| Item | Description |
|---|---|
| Vehicle Type | Concrete Mixer Truck |
| Drive Type | 8×4 |
| Cab | G7–M cabin, one small sleeper |
| Wheelbase | 3000 mm |
| Engine | MC11.43-30 (German MAN technology) |
| Engine Power | 430 PS |
| Emission Standard | Euro III |
| PTO | Equipped |
| Gearbox | ZF 16S2230TO, manual, 16F & 2R |
| Synchronizer | Equipped |
| Steering System | BOSCH brand |
| Front Axle | 9,500 kg × 2, drum brake (MAN technology) |
| Rear Axle | 16,000 kg × 2, drum brake, double reduction (MAN technology) |
| Fuel Tank | 400 L |
| Tires | 315/80R22.5 tubeless |
| Tire Brand | GOODYEAR |
| Spare Tire | 1 unit |

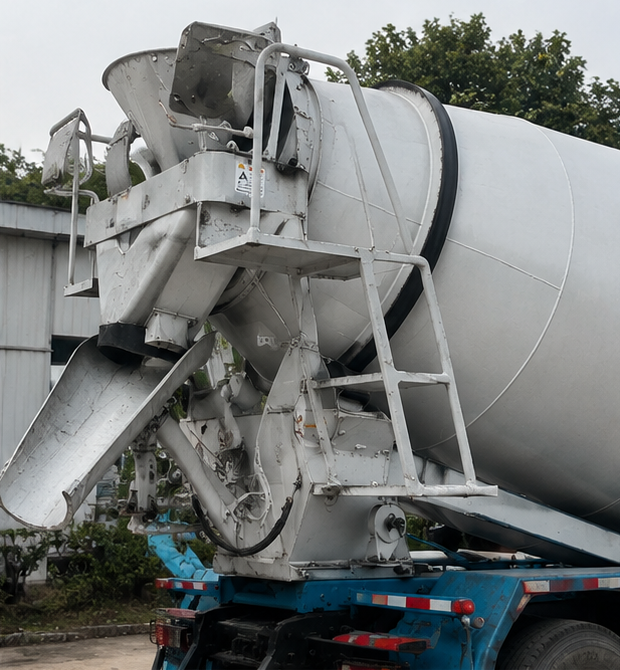

| Mixer Tank Volume | 12 m³ |
| Auxiliary Brake | Engine exhaust valve brake |
| Safety Systems | ABS + ASR + EBL |
| Cab System | Electronic cab-flip system |
| Comfort & Equipment | A/C, driver air suspension seat |
| Protection | Intercooler protection |
| Alarm System | Reverse alarm |
| Monitoring | Tachograph |
| Compliance | Meets applicable regulatory requirements |
| Customization | Color optional |
SINOTRUK SITRAK 8×4 Mixer Truck FAQ
1. What is the mixer tank capacity of the SINOTRUK SITRAK 8×4 Mixer Truck?
The SINOTRUK SITRAK 8×4 Mixer Truck is equipped with a 12m³ mixer tank, which is suitable for transporting ready-mixed concrete for construction sites, road projects, bridges, commercial buildings and infrastructure projects.
2. What engine does this SINOTRUK SITRAK mixer truck use?
This truck uses the MC11.43-30 engine with German MAN technology. It delivers 430PS, providing strong power for heavy-duty concrete transportation and construction applications.
3. Is the SINOTRUK SITRAK 8×4 mixer truck suitable for heavy-duty construction work?
Yes. The truck adopts an 8×4 drive type, with 9,500kg×2 front axles and 16,000kg×2 rear axles. The double rear axle design helps improve load-bearing capacity and makes it suitable for demanding construction and concrete delivery operations.
4. What gearbox is used on this mixer truck?
The truck is equipped with a ZF 16S2230TO manual gearbox, with 16 forward gears and 2 reverse gears. This gearbox offers a wide gear range, which is helpful for different road conditions, heavy loads and construction site driving.
5. What is the emission standard of this SINOTRUK SITRAK mixer truck?
The listed configuration meets Euro III emission standard. Before purchasing, buyers should confirm whether Euro III is accepted in their local market or project region.
6. What is the fuel tank capacity?

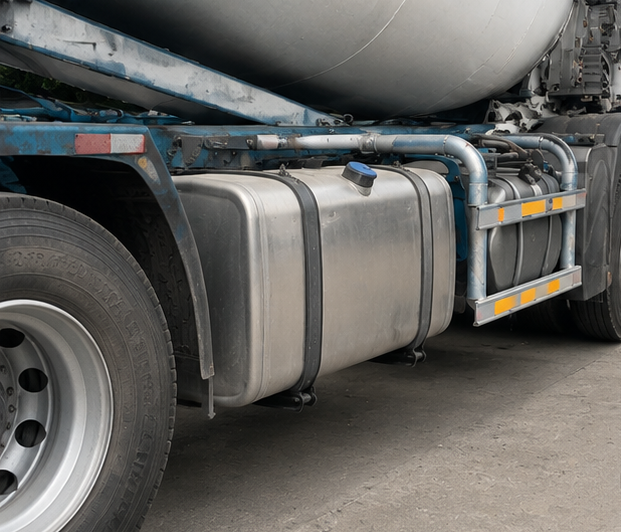

The fuel tank capacity is 400L, which can support long working hours and reduce the frequency of refueling during concrete transportation.
7. What tires does the truck use?

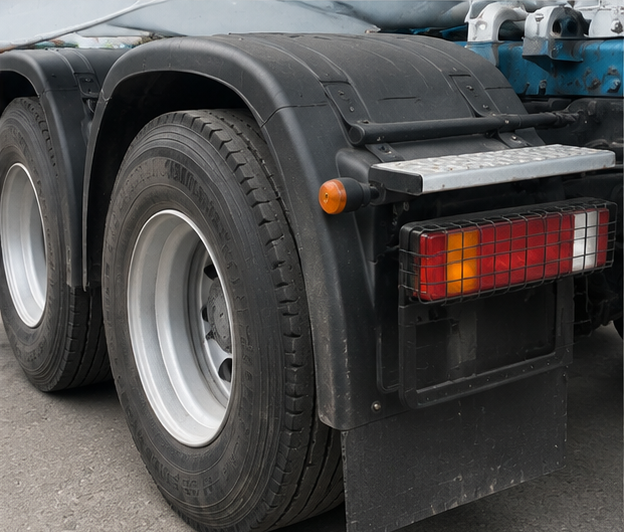

The truck is equipped with 315/80R22.5 tubeless tires, with GOODYEAR tire brand listed in the configuration. It also comes with 1 spare tire.
8. Does the truck come with safety systems?
Yes. The truck is equipped with ABS + ASR + EBL, helping improve braking control, traction control and overall driving safety, especially under heavy-load or complex road conditions.
9. Is PTO included for the mixer system?
Yes. The truck is equipped with PTO, which is necessary for powering the mixer drum system and ensuring stable concrete mixing during transportation.
10. What braking system does this truck use?
The truck uses drum brakes on both front and rear axles. It also has an engine exhaust valve brake as an auxiliary brake, which helps improve braking performance on slopes or during long-distance operation.
11. Is the cab comfortable for the driver?

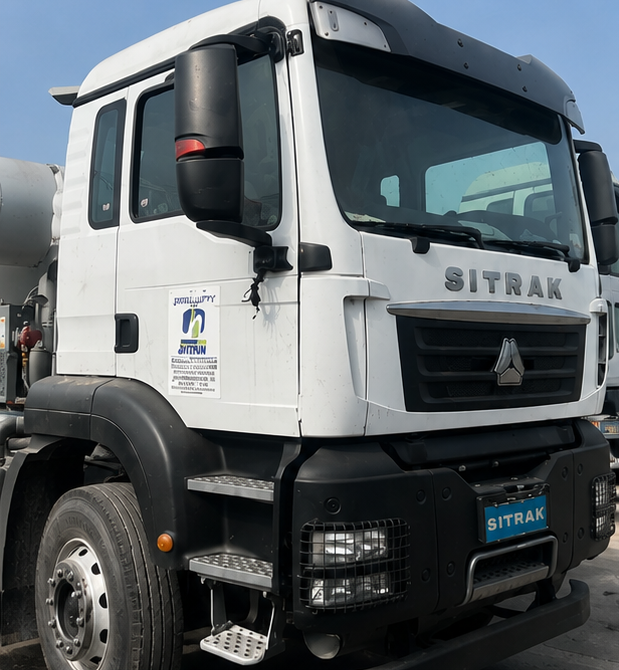

Yes. The truck comes with a G7-M cabin with one small sleeper, A/C, and a driver air suspension seat. These features improve driver comfort during long working hours.
12. Does the truck have monitoring or warning equipment?
Yes. The truck includes a tachograph for driving data monitoring and a reverse alarm, which helps improve safety when operating around construction sites.
13. Can the truck color be customized?
Yes. The specification shows that the color is optional, so buyers can choose suitable colors according to company branding or fleet requirements.
14. What type of buyer is this truck suitable for?
This SINOTRUK SITRAK 8×4 Mixer Truck is suitable for ready-mix concrete companies, construction contractors, road and bridge contractors, infrastructure projects, and concrete transportation fleets.
15. What should customers confirm before placing an order?
Before purchasing, customers should confirm the required emission standard, left-hand drive or right-hand drive, mixer tank capacity, tire brand, local road regulations, shipping destination, warranty terms, spare parts support and after-sales service. This helps ensure the truck matches the local market and project requirements.
